Turning Digital Designs Into Reliable Circuit Boards
We manufacture PCBs for prototype development, engineering validation and volume production, with controlled processes designed for consistent quality and reliable performance.
Request a PCB Quote
From Gerber Files to Finished PCB
Before manufacturing begins, our engineering team reviews the complete PCB manufacturing package to ensure the design is ready for fabrication.
- Gerber files
- Drill files
- PCB stack-up
- Fabrication drawings
- Material specifications
- Surface finish requirements

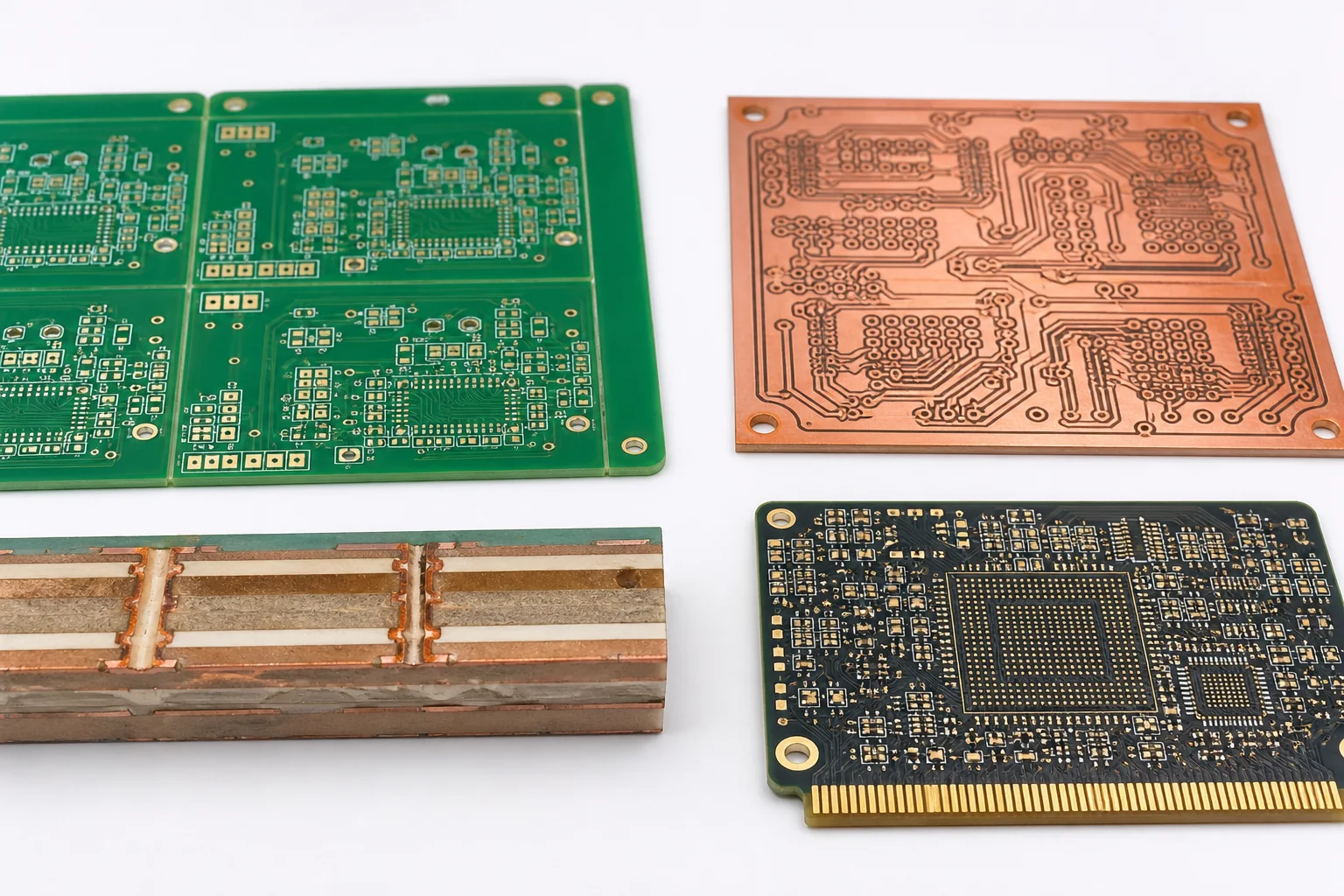

Built Around Your Product Requirements
Different electronic products require different PCB materials and manufacturing technologies.
FR-4
Standard PCB material for a wide range of electronic applications.
High-Tg Materials
Designed for applications requiring greater thermal performance and reliability.
Multilayer Construction
Supporting complex electronic designs and higher circuit density.
Copper Thickness
Selected according to current carrying requirements and application needs.

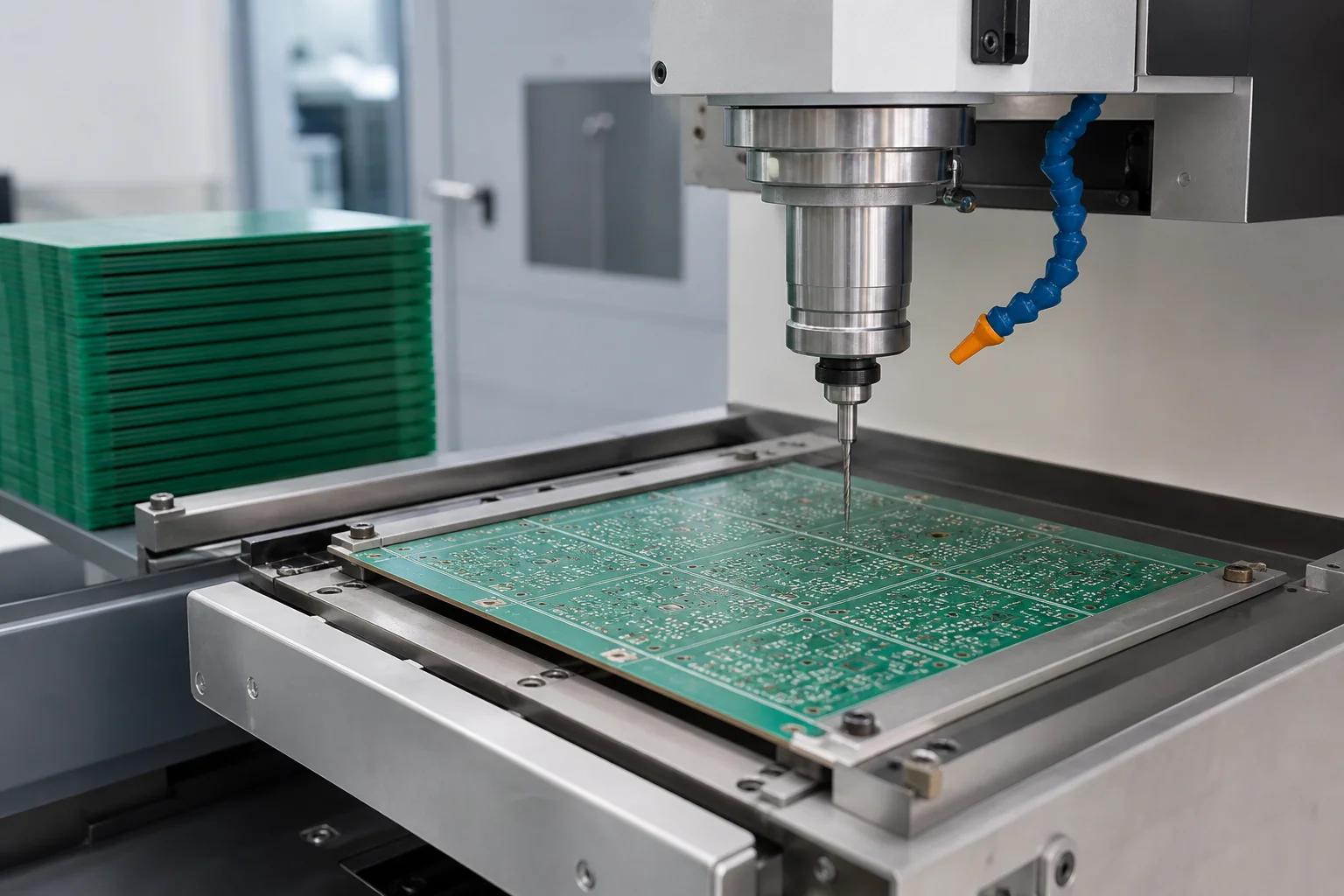

PCB Fabrication Process

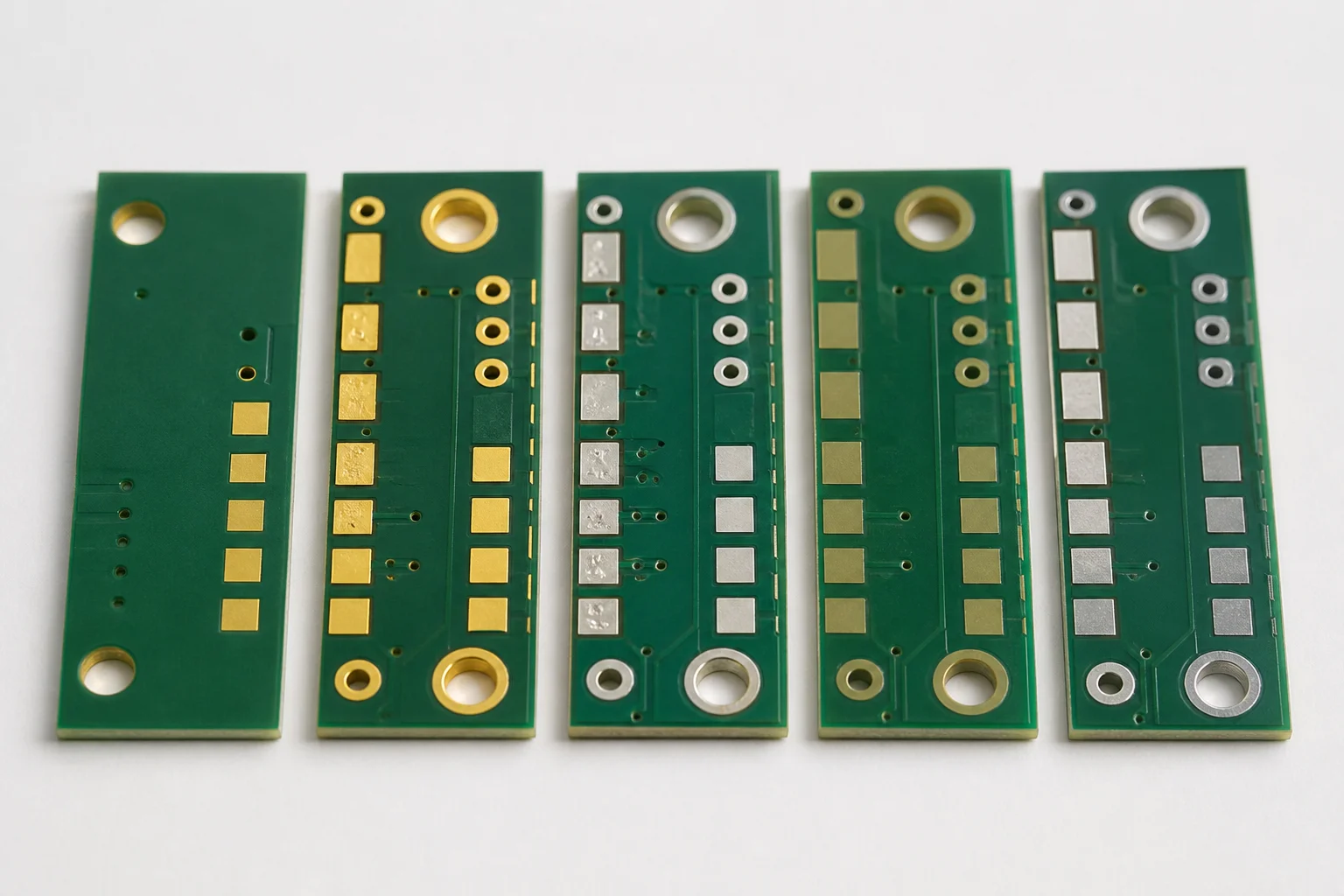

Surface Finishes
Depending on application and assembly requirements, PCB manufacturing can support different surface finishes.
The appropriate finish is selected according to solderability, reliability, application requirements and cost considerations.

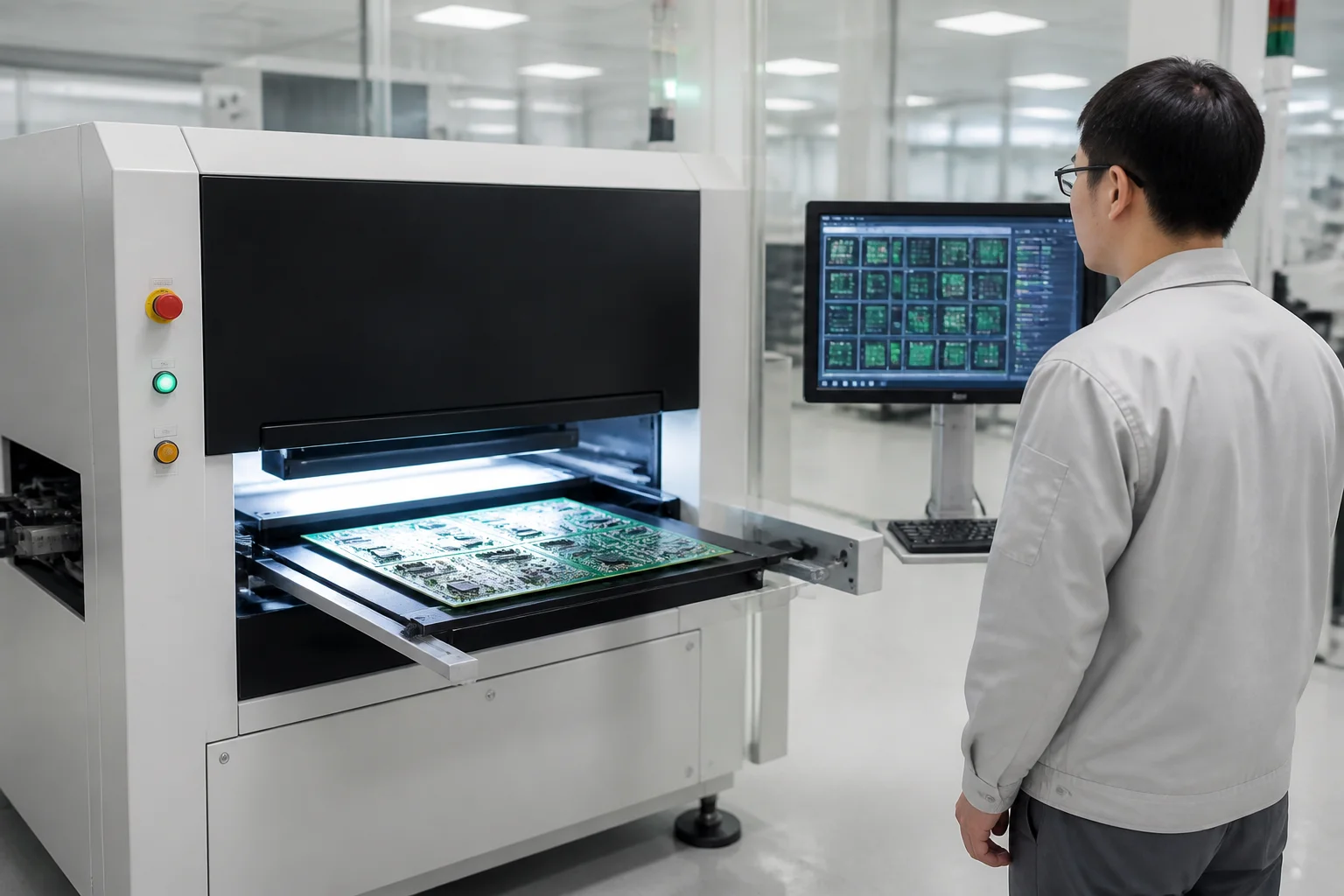

PCB Inspection
Before moving to assembly, finished PCBs are inspected for manufacturing quality.
Only qualified PCBs proceed to the assembly stage.
Frequently Asked Questions
Do I need Gerber files for PCB assembly?
Yes. Gerber is the common family of PCB data formats describing traces, solder mask, silkscreen, and pads. The exact file set is confirmed against the fab and the project requirements.
What surface finish options do you offer?
We process the common finishes including ENIG, HASL, and immersion tin — the right choice depends on pad design, component interface type, and reliability requirements.
How are boards inspected during fabrication?
Each layer is checked against the design data, and finished boards pass electrical inspection (short and open detection) plus dimensional and surface checks before shipment.
Can you panelize our board for SMT production?
Yes. Panelization organizes multiple PCB units on one production board to improve SMT and test efficiency, with V-cut, mouse bites, and process edges designed in.
What board materials and layer counts do you support?
Standard FR-4 as well as high-Tg materials for demanding thermal environments, across the common layer counts used in control and power products.
