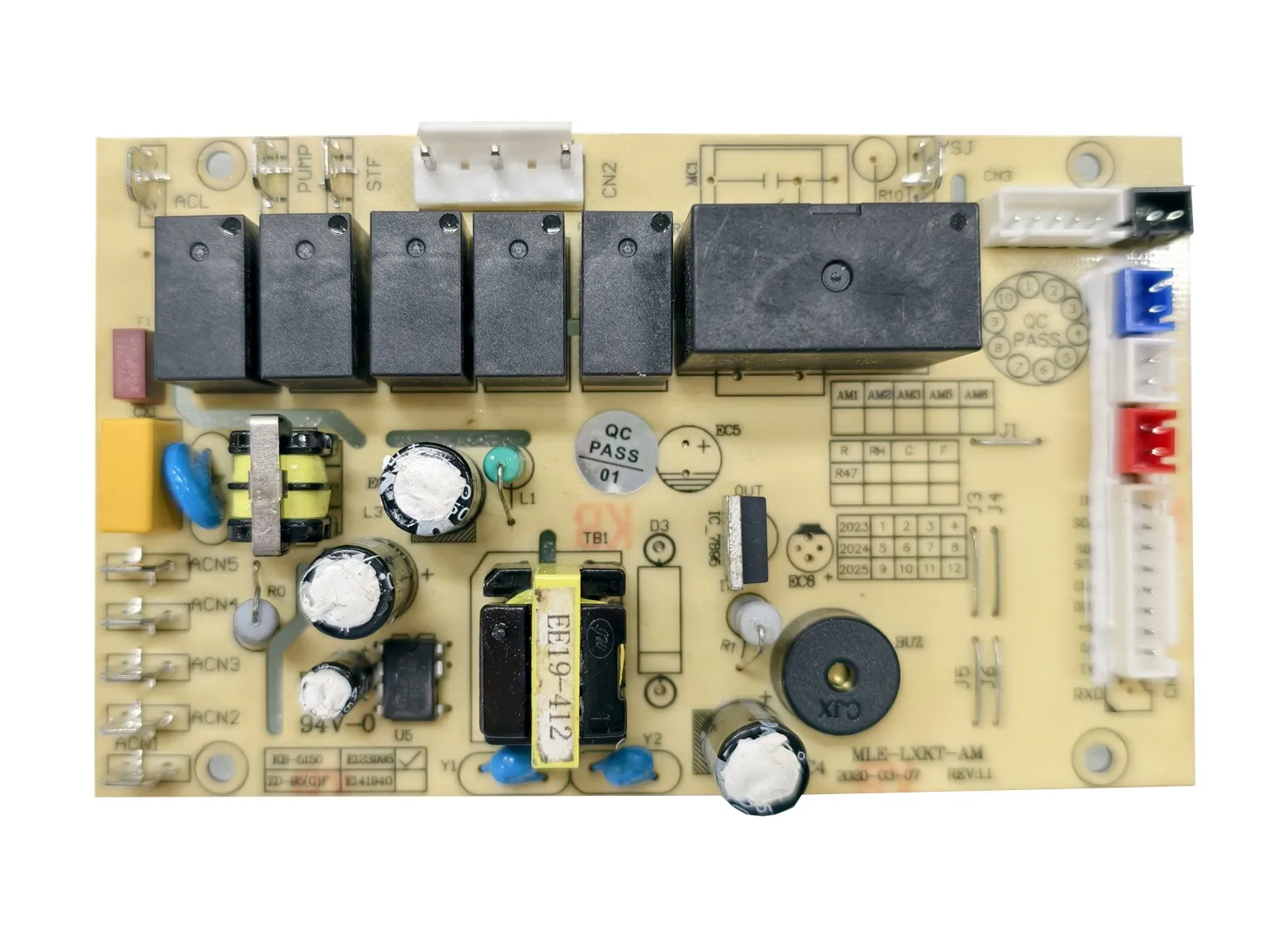

North American portable AC PCBA control board

Cooling Products — Custom PCBA for Portable AC & Fans

HS designs, prototypes and mass-produces custom cooling PCBA for portable air conditioners, evaporative air coolers and bladeless fans — from membrane-key compressor controllers to WiFi-connected smart fans. Each board below is a production-ready platform, engineered and assembled to your specification.

Talk to an engineer

Cooling PCBA Platforms

Electric fireplace 6-channel power relay driver and main power supply controller board PCBA with transformer and color-coded sockets Electric fireplace 2-digit LED digital display and 7-key capacitive touch spring keypad controller board PCBA with cable

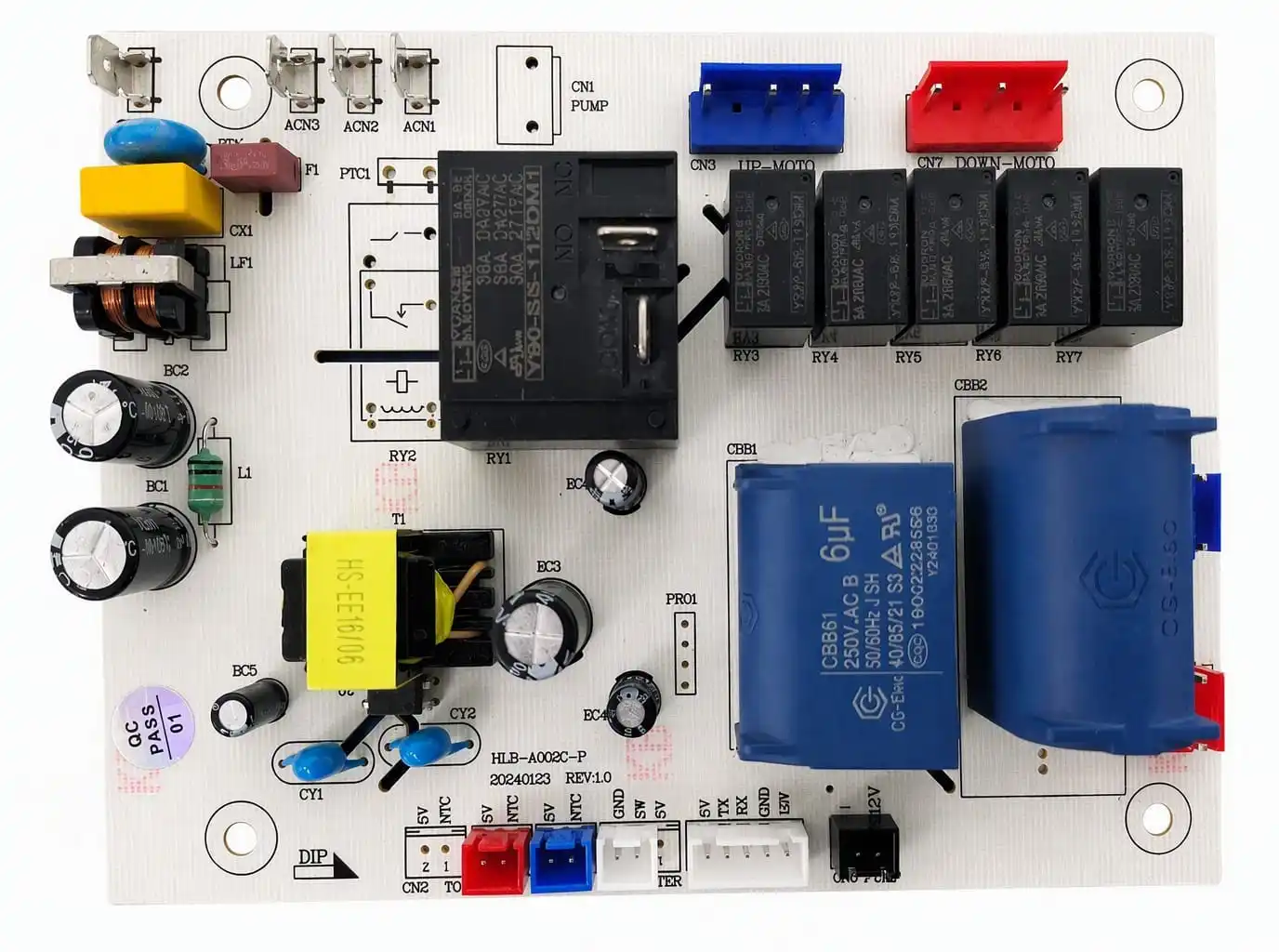

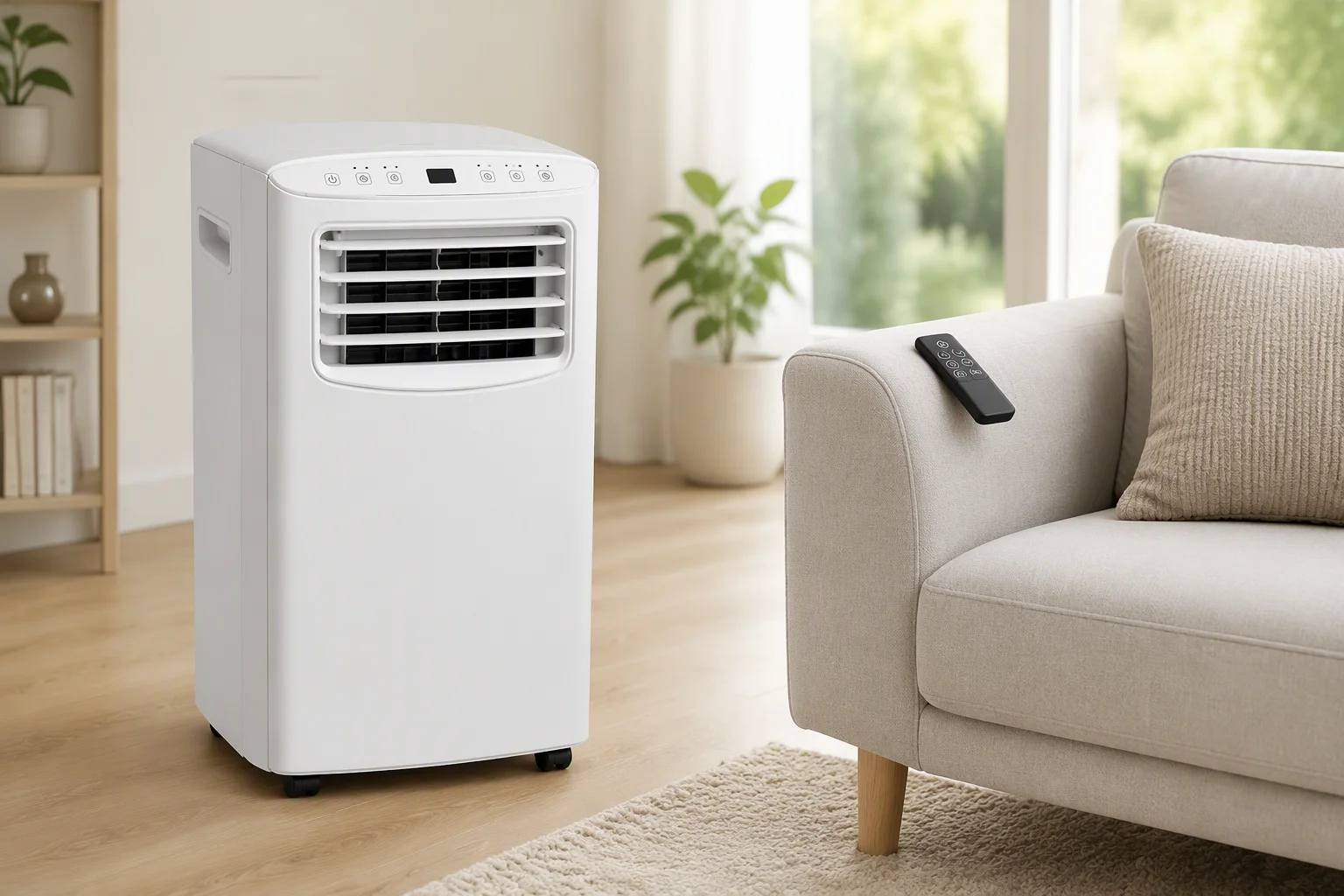

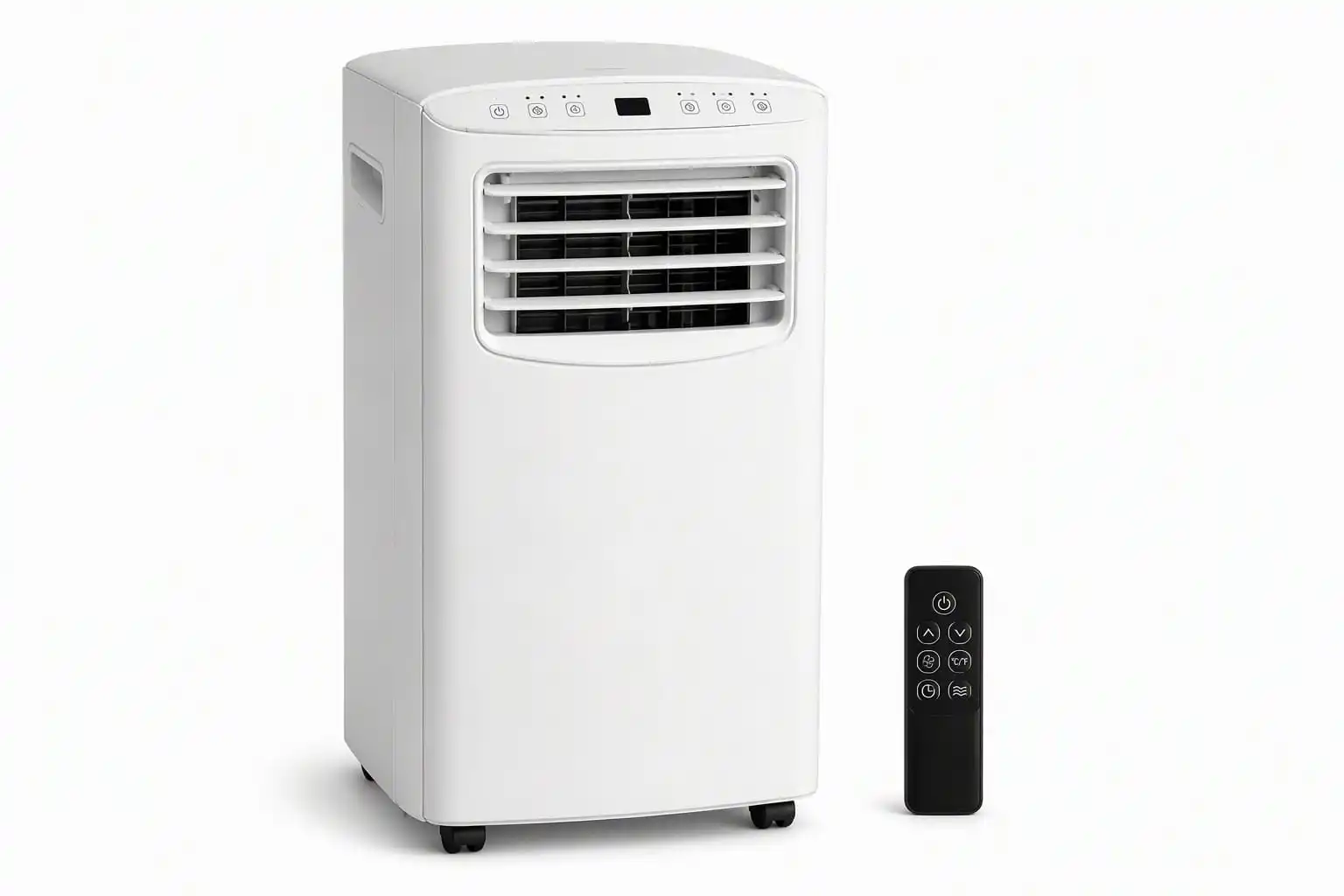

American Version Smart Portable Air Conditioner PCBA

  • 5-in-1: cool, dehumidify, fan, auto, heat
  • TEMP key dual-use: temperature & timer
  • 3-speed fan, sleep & left-right swing
  • 0–24h timer: on when standby, off when running
  • Membrane keypad, LED + buzzer alarms

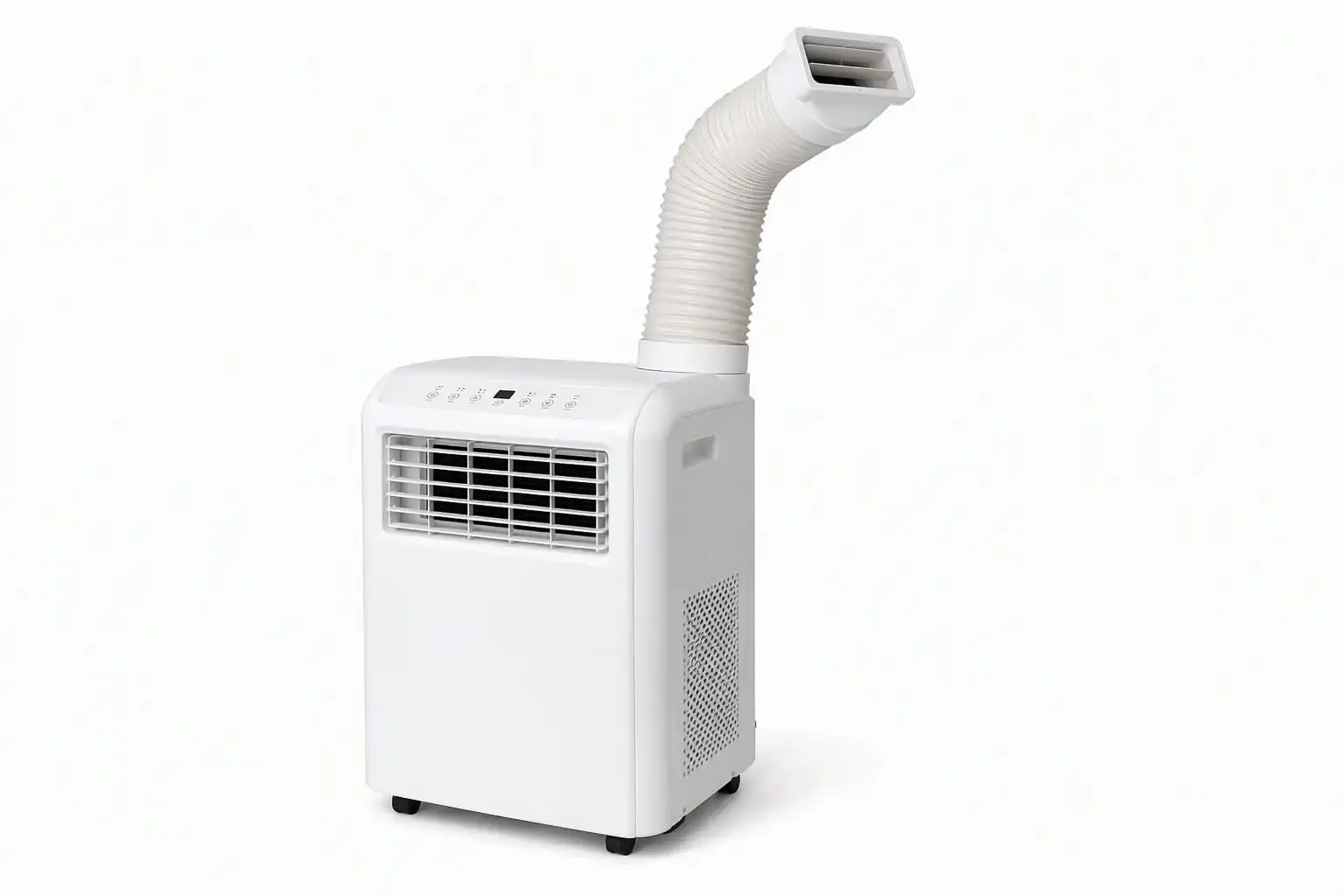

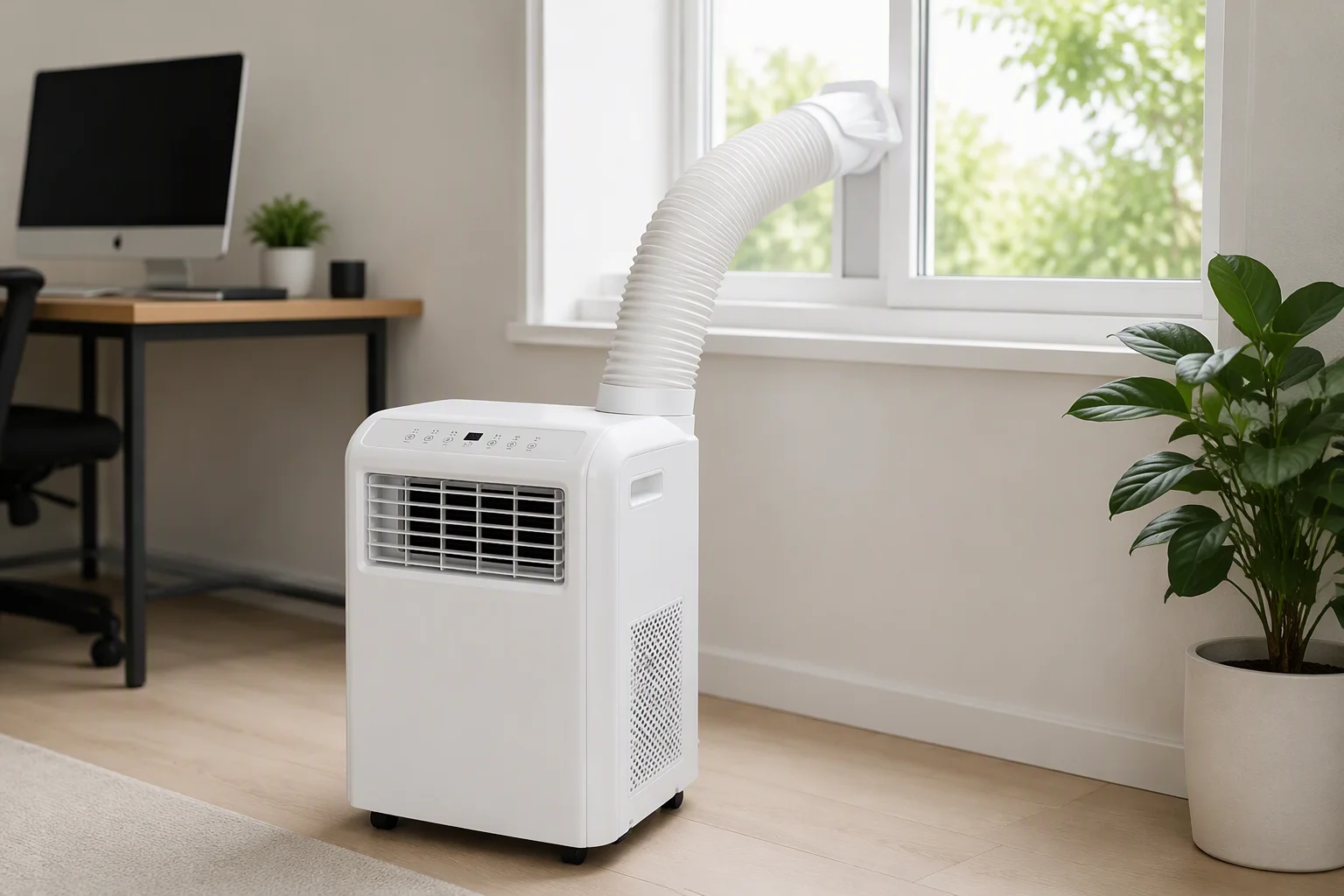

  • Electric hose auto-lift, UP/DOWN
  • Cool / dehumidify / fan / auto cycle
  • Upper fan speed control, swing louver
  • 1–24h timer: off when running, on when standby
  • Sleep mode & anti-mold (CL) standby purge
  • Isolated power, US-safety compliant
  • Brushless fan driver, stepless speed
  • WiFi 2.4G app + voice announcements
  • IR remote with command learning
  • Guard: overcurrent / overvoltage / overheat / stall
Vertical main power supply and multi-relay controller board PCBA for smart home appliances on pure white background Touch button front interface control board PCBA with illuminated black 7-segment LED display showing 88 on pure white background Capacitive touch keypad user interface PCBA with light-blue LCD display screen for smart appliances on white background Miniature sensor probe PCB with coiled black multi-conductor ribbon cable and red terminal connectors on pure white background

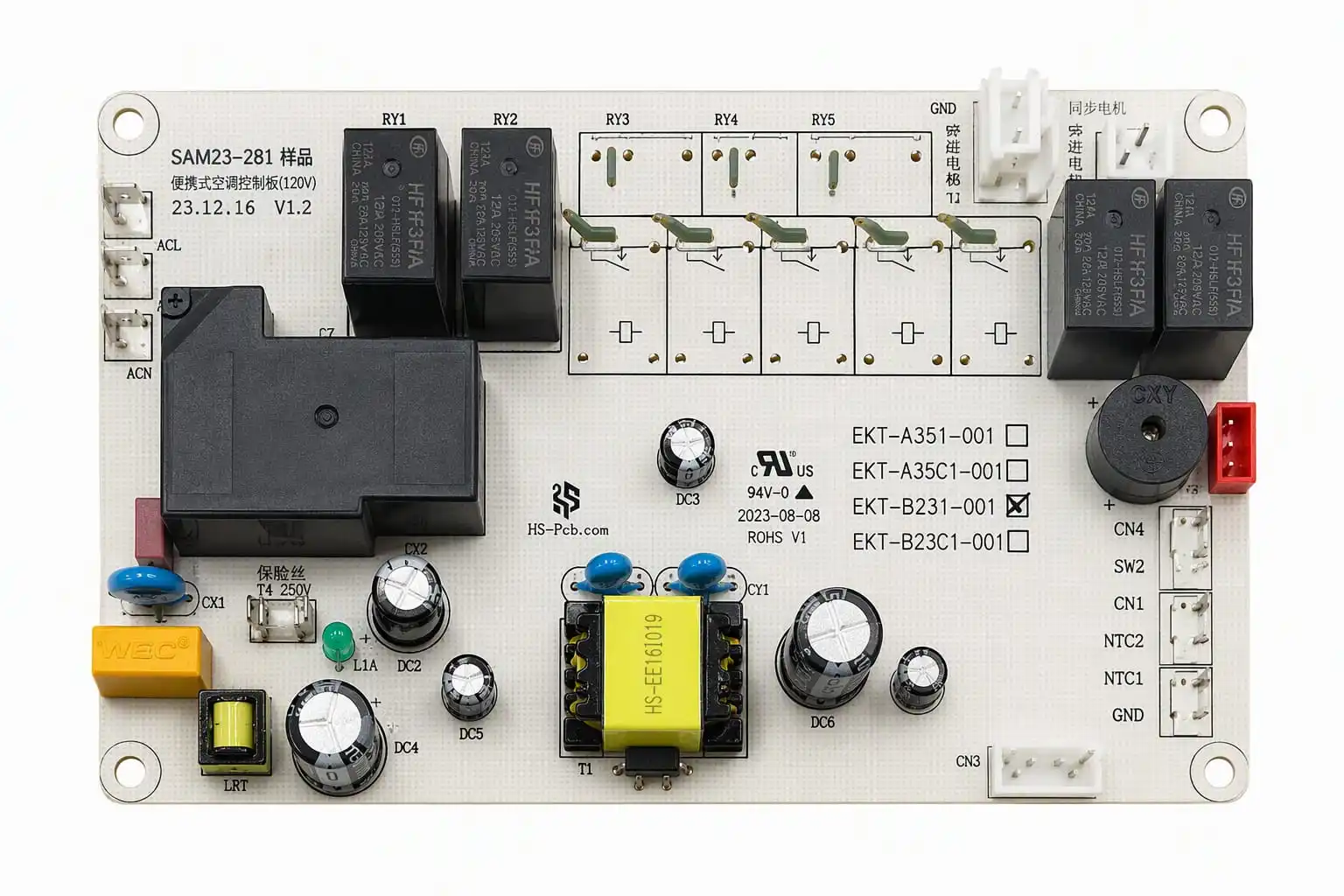

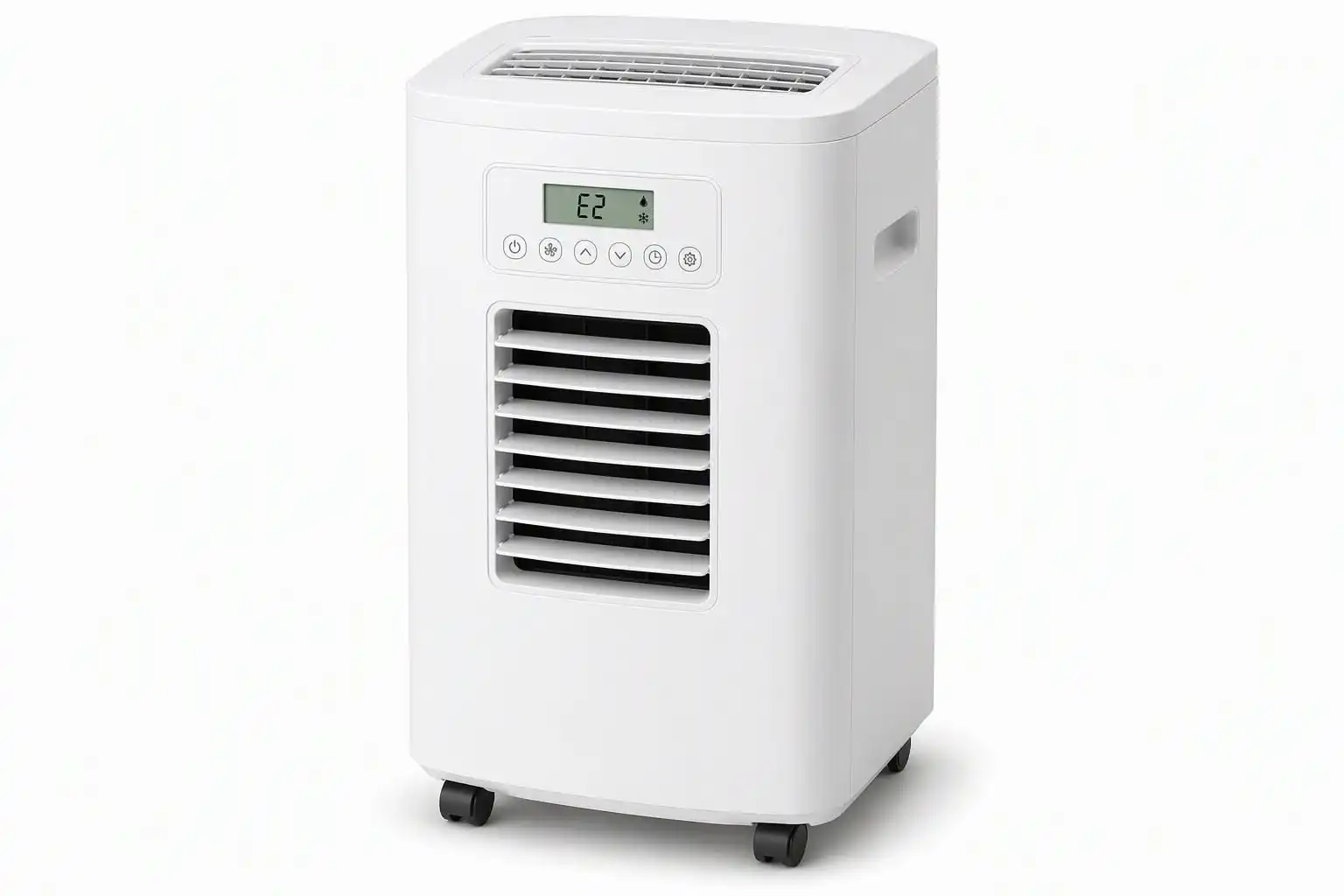

120V Household Portable PCBA

  • 100V / 220V dual-voltage design
  • Cool 16–38 °C, dehumidify 40–70 %RH
  • Auto-defrost cycle, swing louver
  • 1–12h timer, 2-speed fan
  • Water-full alarm, E1–E3 fault codes
AC-DC switching power supply and brushless motor driver PCBA board for smart fans with 400V capacitor and aluminum heatsink on pure white background Dual 7-segment digital LED numeric display matrix and status indicator array PCBA board with IR receiver on white background 5-key tactile push button switch control panel PCBA for smart home appliances and electric fans on pure white background

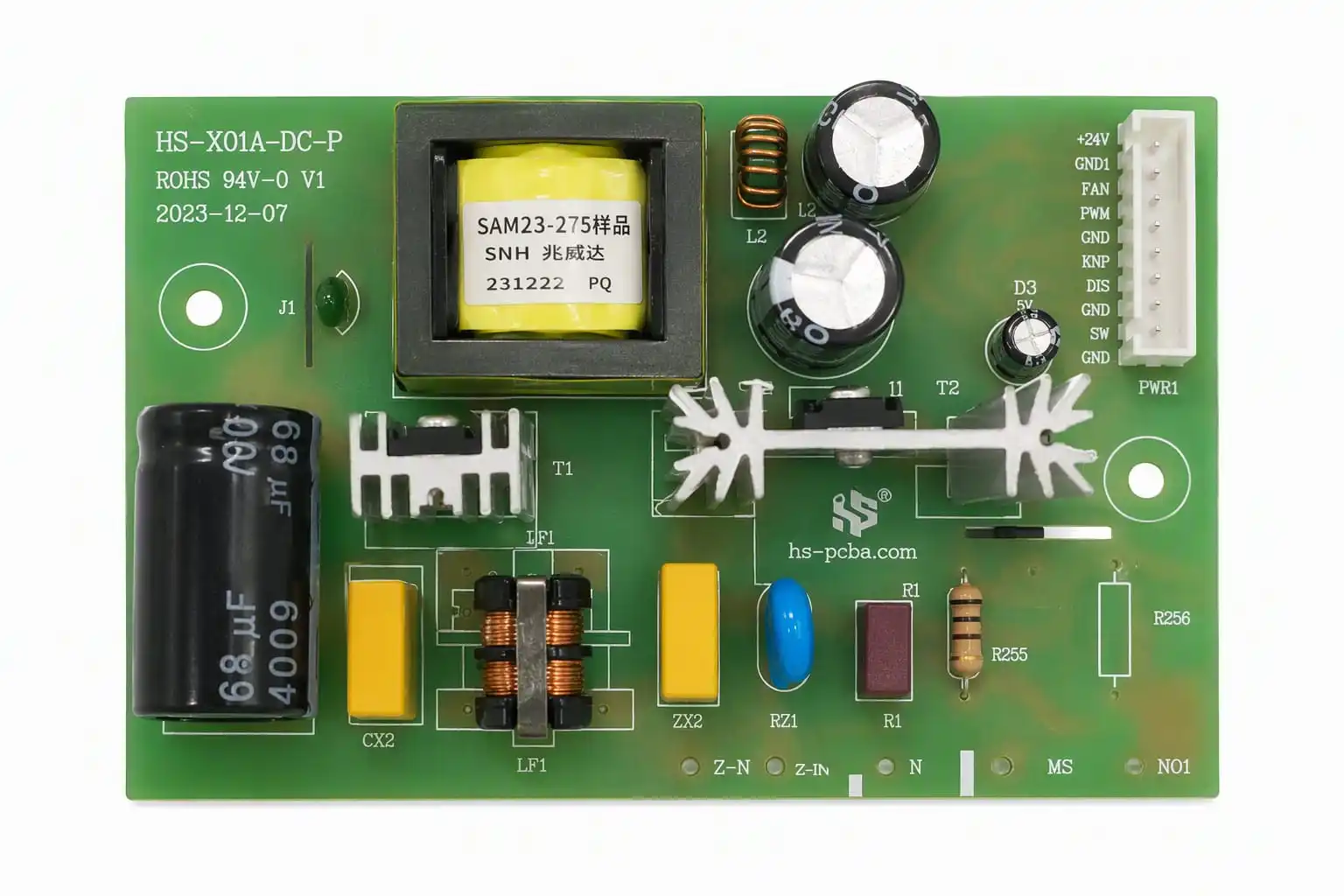

Cooling Fan PCBA

  • Infrared & key control
  • Rated input voltage: 100–240V / 50Hz / 60Hz
  • Standby power < 0.5W, EU energy efficiency compliant
  • 7-speed wind speed regulation
  • 0–12h timing
  • With oscillation & negative ion function
Smart electric fireplace main power supply and relay driver board PCBA with switching transformer and electrolytic capacitors Smart electric fireplace WiFi IoT module and concentric circular flame effect LED matrix controller board PCBA Smart electric fireplace ergonomic black handheld wireless infrared remote controller with dimming wheel and flame controls

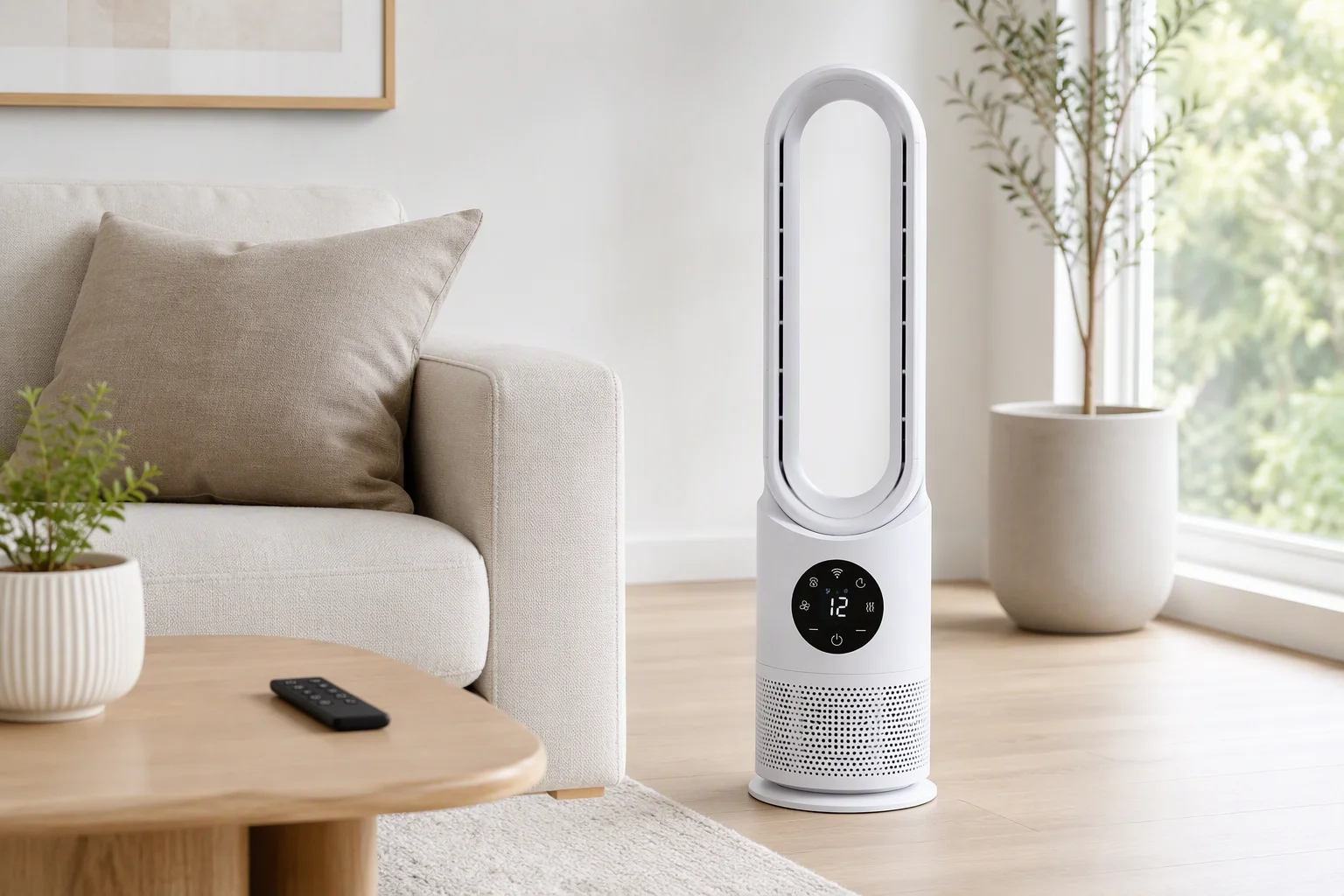

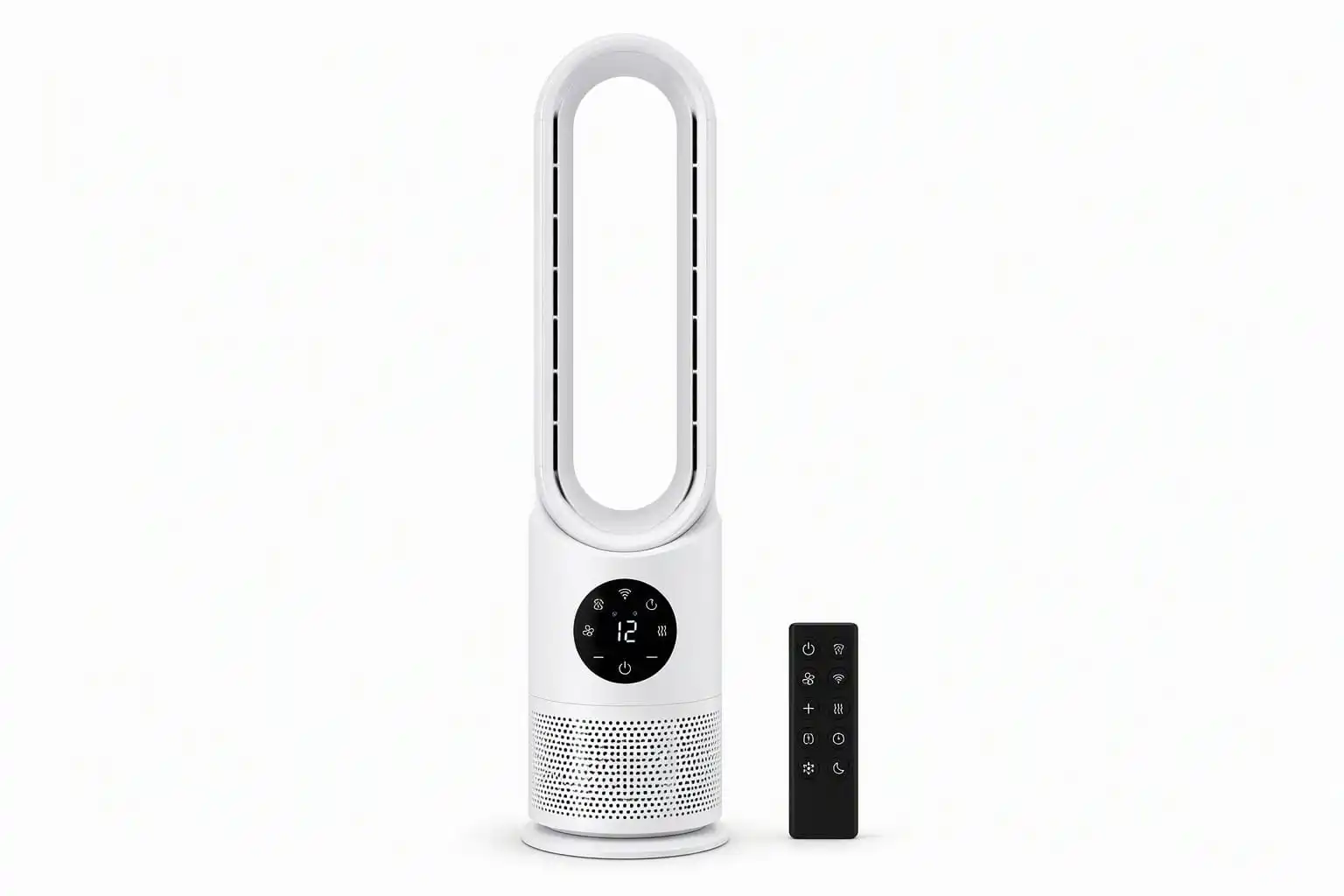

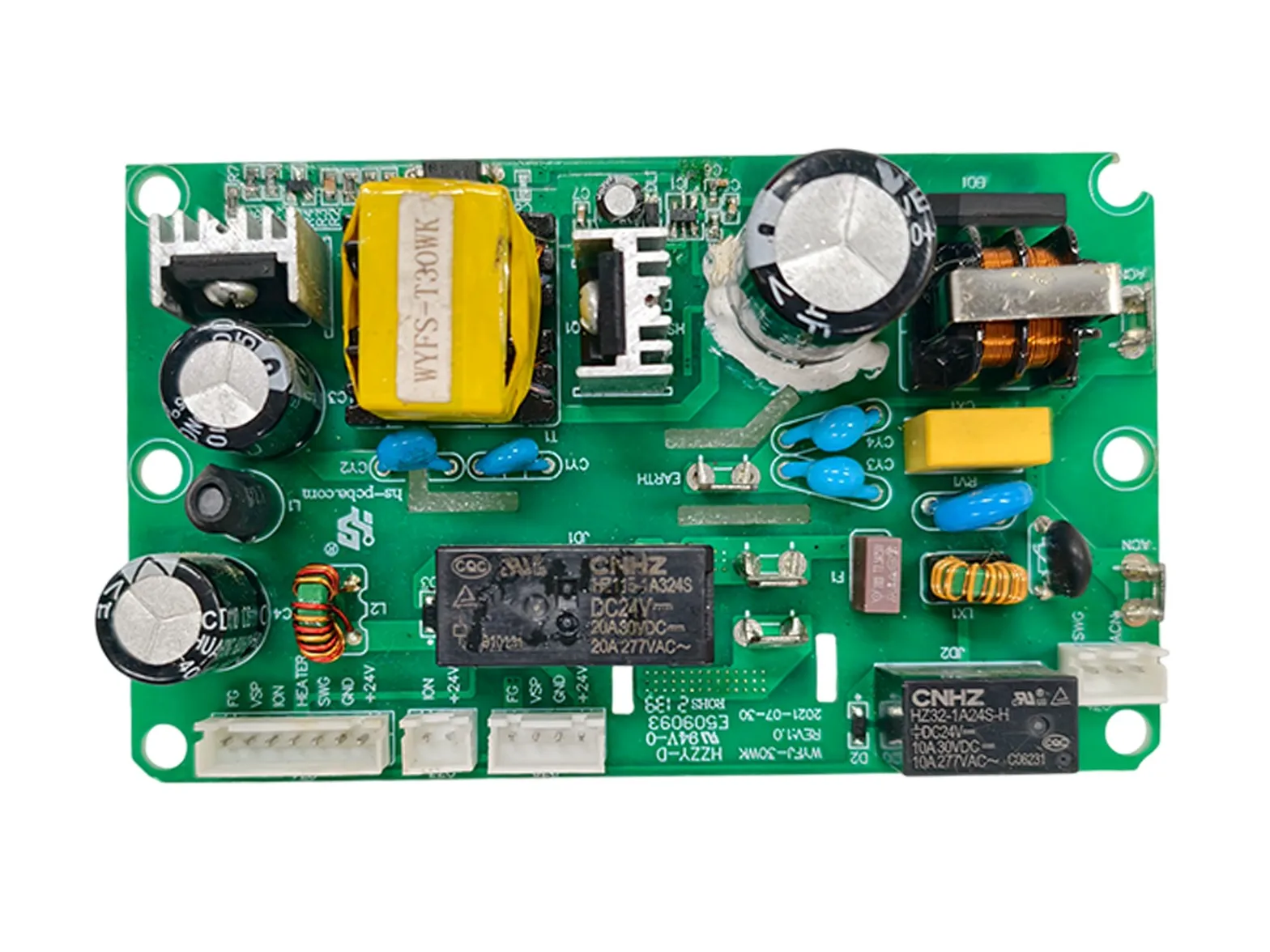

Bladeless Fan PCBA

  • Touch button & WiFi control
  • Blowing, heating, UV sterilization & PM2.5 filtration
  • Timing, wind speed regulation, swing & cool air
  • 12-speed wind speed regulation & water shortage detection
  • Anti-tipping function

Cooling PCBA — Frequently Asked Questions

What is a cooling PCBA, and how is it different from standard board assembly?

A cooling PCBA is the complete control board that drives a cooling appliance — compressor, fans, pumps, hose-lift motors, displays and user controls — rather than a generic board. HS covers the full chain: DFM review, SMT/THT assembly, testing and NPI, delivering production-ready boards that match your enclosure and user interface.

Can you customize one of these cooling boards to our exact requirements?

Yes. Every platform on this page is engineered to specification. HS adjusts layout, relay count and compressor stages, display type, connectivity ( WiFi/Tuya, RF/IR remote ) and firmware features — from a single modification on an existing platform to a fully new design developed with you .

What files do we need to provide for a custom cooling board?

If you have an existing design: Gerber files, BOM and pick-and-place data are enough. If you start from a concept, only your requirements are needed — HS’s 35-person R&D team handles schematic capture, PCB layout and component selection in-house.

Do you support small prototype batches?

Yes. Projects can start with a small number of prototype sets to validate design and assembly before scaling to mass production. NRE, unit pricing and lead time are quoted per project after we review your requirements.

How do you ensure board quality?

Inspection and testing are included by default. The specific methods — AOI, X-ray, ICT, FCT — are defined per project based on your requirements, with test reports provided. Assembly follows IPC J-STD-001 under an ISO 9001 quality system (certificate No. 51824Q09327R0).

Which cooling products do these platforms cover?

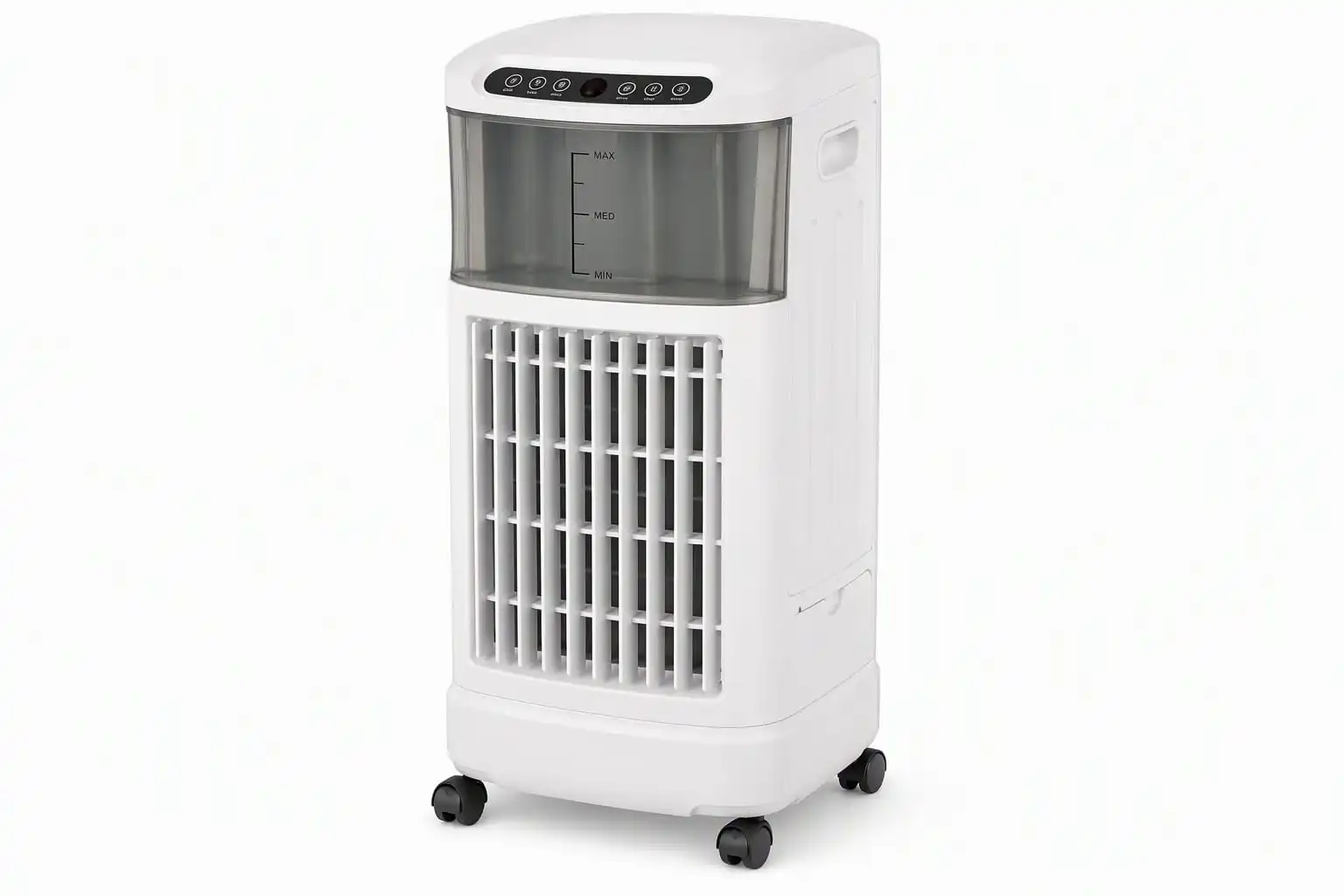

These cooling PCBA platforms include portable AC control boards for North American and household models, hose auto-lift air conditioners, evaporative air cooler control boards and bladeless tower fan control boards. HS can adapt the same design-to-manufacturing process to other cooling appliances based on your compressor, fan, pump, sensor, interface and connectivity requirements.

Need a custom cooling control board?

From prototype to mass production, HS engineers, assembles and tests cooling PCBA to your specification — SMT/THT , NPI and full turnkey delivery.
