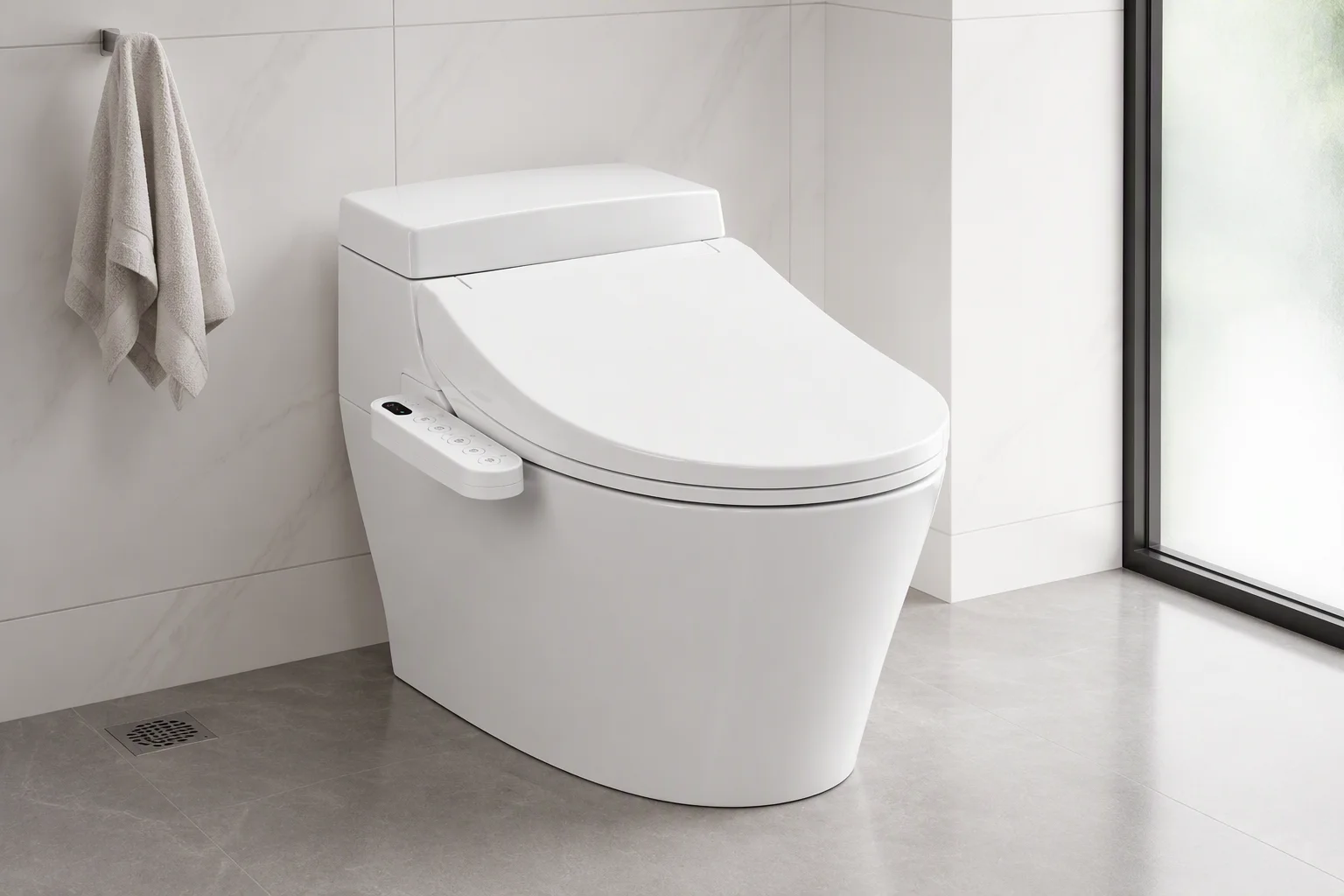

White one-piece smart toilet with side control panel installed in a bright modern bathroom

Smart Home Appliance PCBA Products — Custom PCBA for Everyday Appliances

HS designs, prototypes and mass-produces custom smart home appliance PCBA for dehumidifiers, air purifiers, water-heated blankets, DC brushless ceiling fans and smart toilets. Each control board can be adapted to your power stage, sensors, display, connectivity and firmware requirements, from prototype validation through mass production.

Talk to an engineer

Smart Home Appliance PCBA Platforms

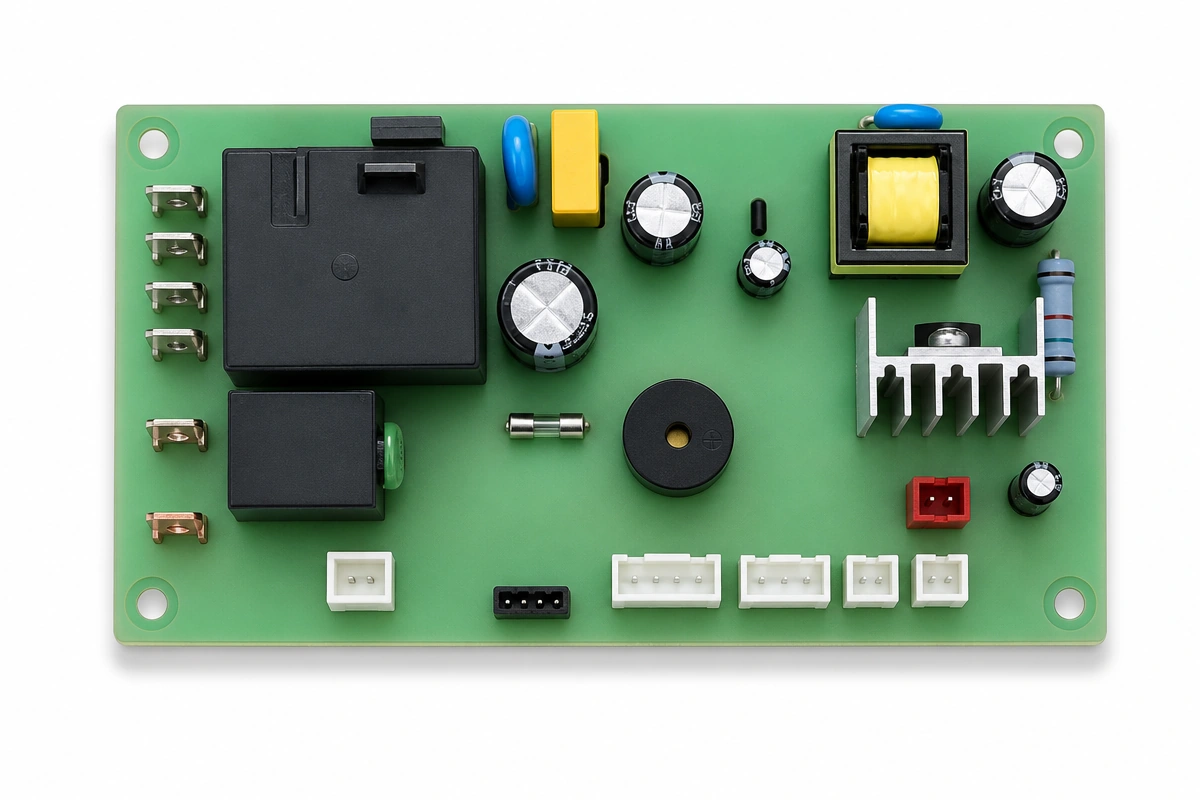

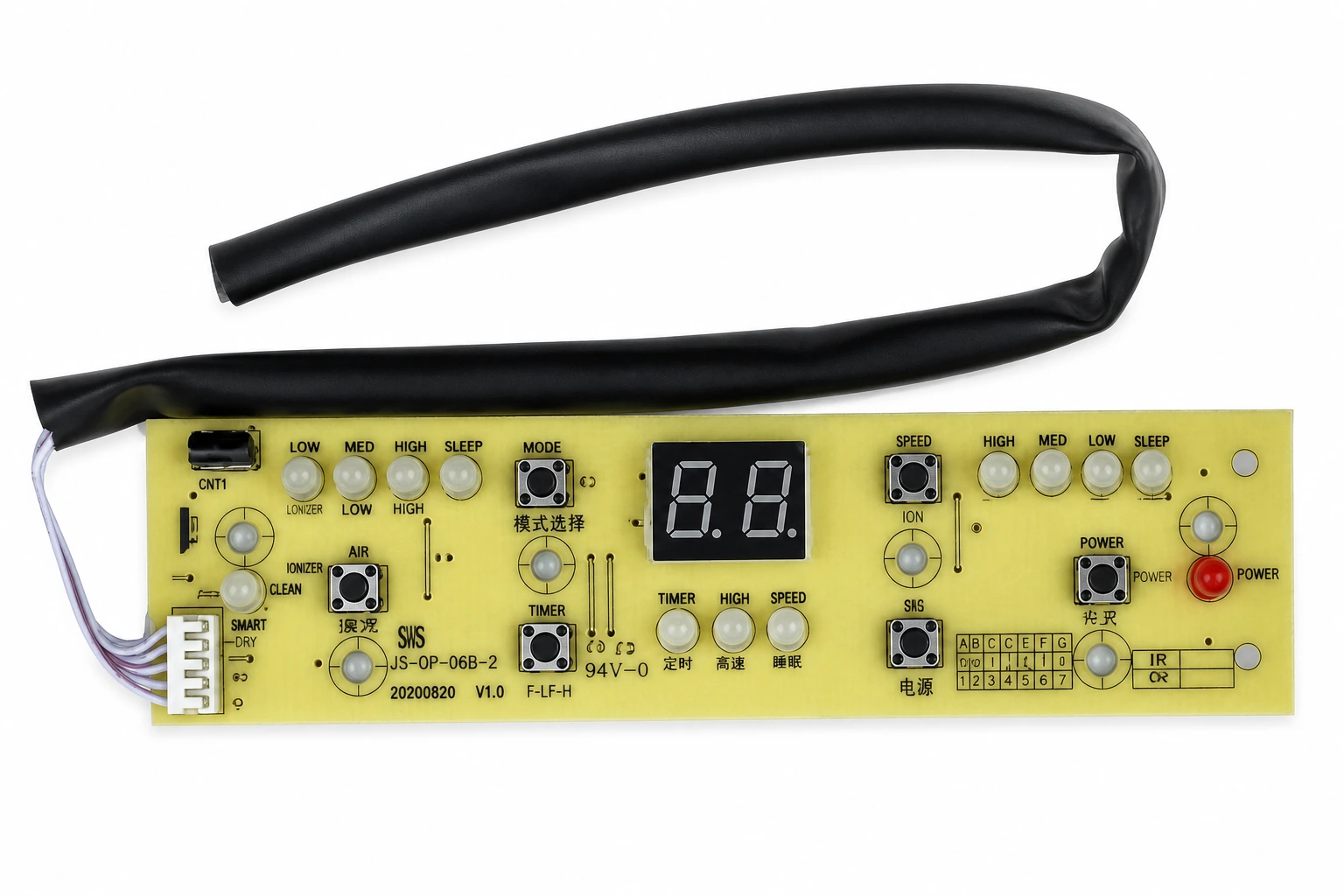

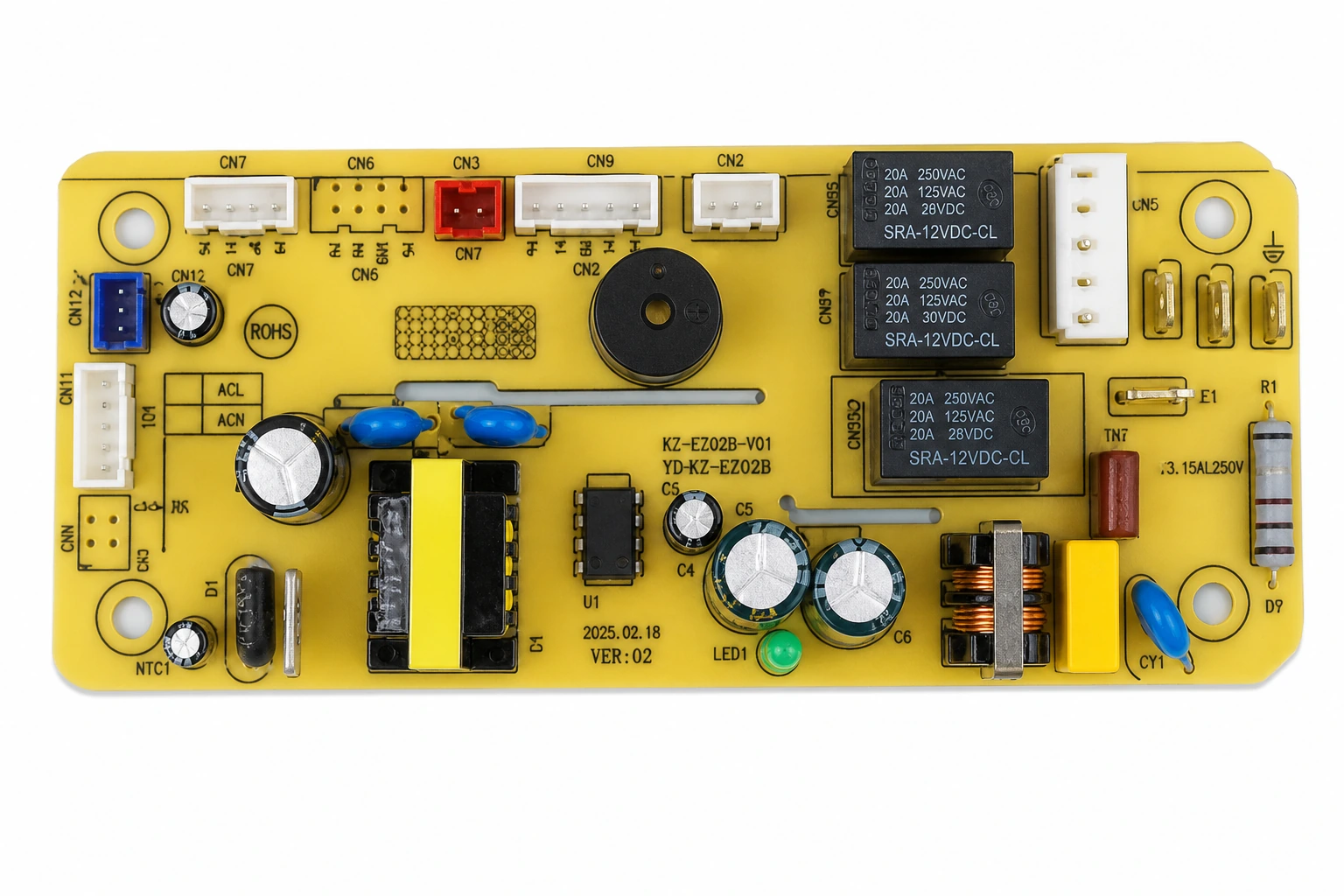

Main power supply and compressor relay driver board PCBA for smart home dehumidifiers with step-down transformer and terminal blocks on pure white background Front panel user interface PCBA board with 2-digit LED 7-segment display and tactile control buttons with black wiring harness for dehumidifiers on white background Vertical humidity sensor and micro-controller daughterboard PCBA for smart dehumidifiers on pure white background

Dehumidifier PCBA

  • Humidity set 30–90 %RH
  • 4 modes: standard, rainy, sleep, dry
  • 2-speed fan, 30s post-off air purge
  • 3-min compressor restart, on/off timer
  • Water-full protect, standby memory
  • Two-level menu: short & long press
  • Humidity offset ±15 %RH
  • Fan strategy: off / on, 1-min delay
  • High-temp alarm 38–65 °C (HH code)
  • Auto-defrost & water-full alarm

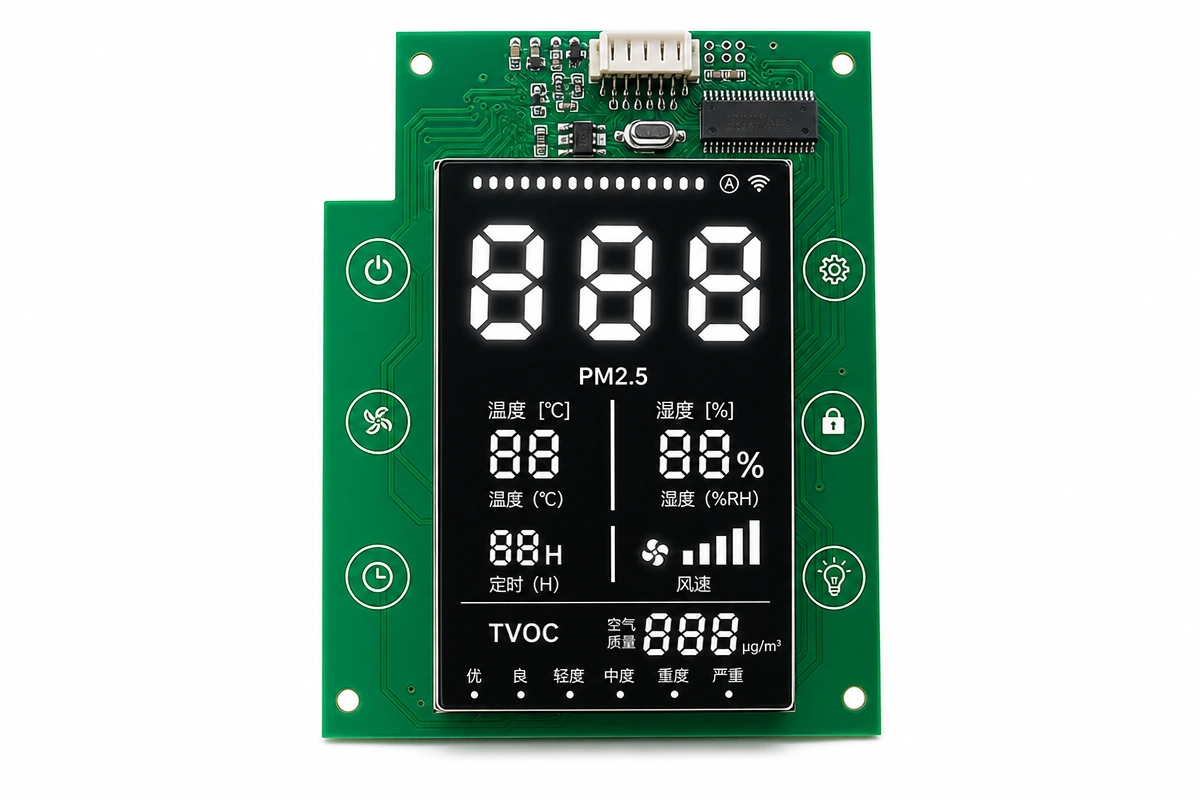

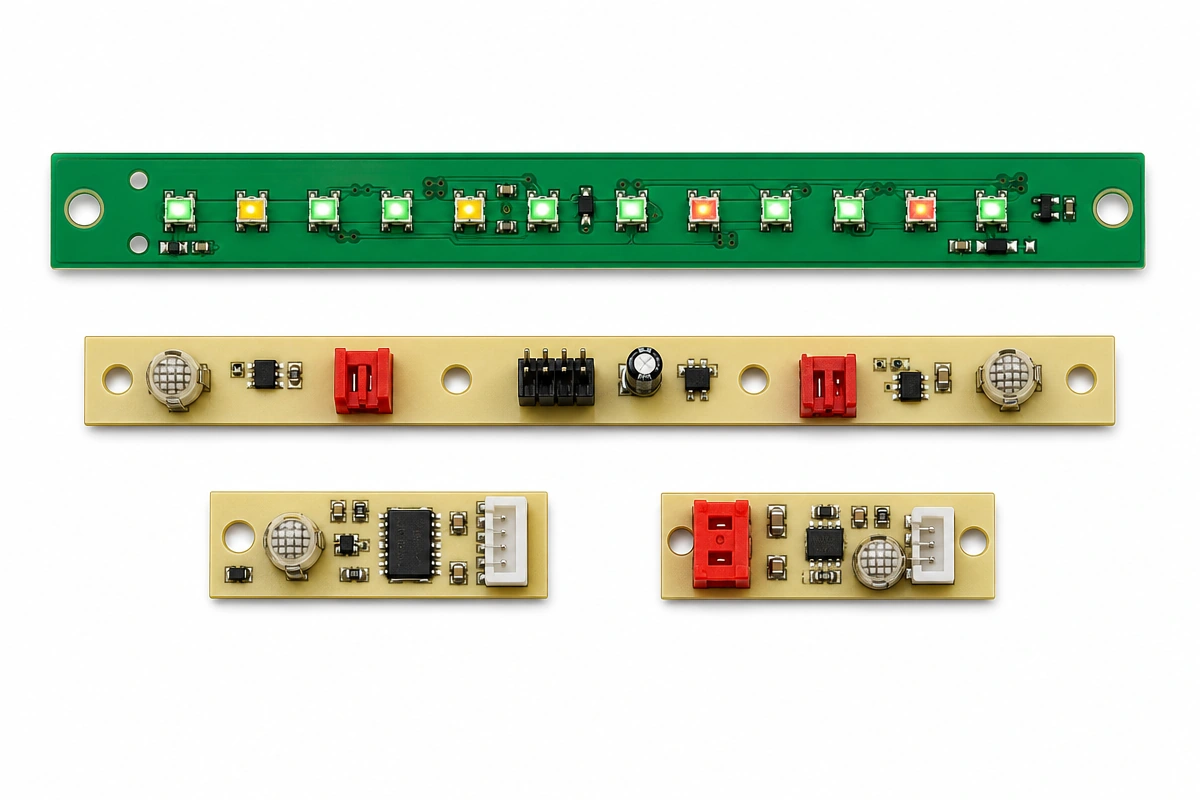

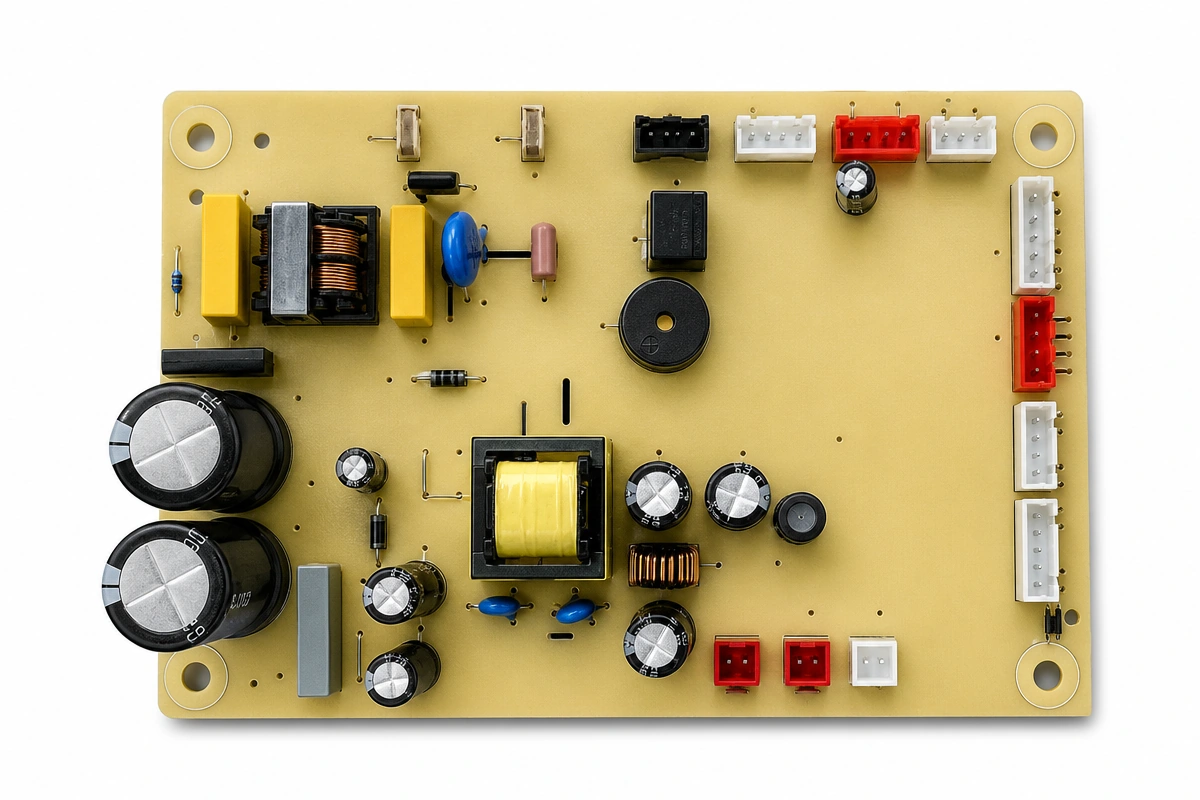

Smart air purifier PM2.5 and environmental air quality VA digital LED display panel controller board PCBA Smart appliance 8-knob rotary potentiometer switch control panel strip board PCBA with white adjustment shafts Smart air purifier linear multi-color LED air quality indicator light bar strip and environmental sensor sub-board kit

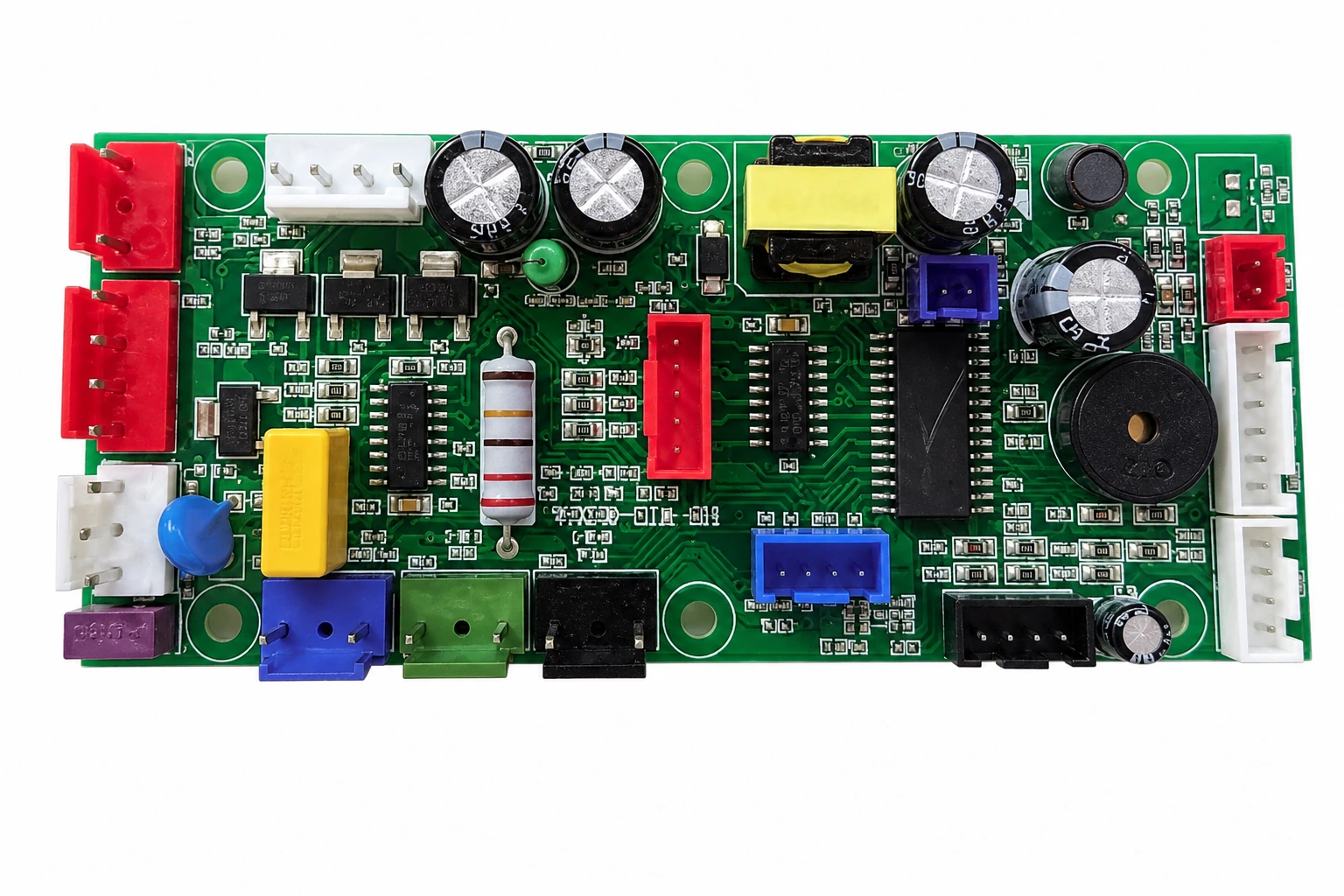

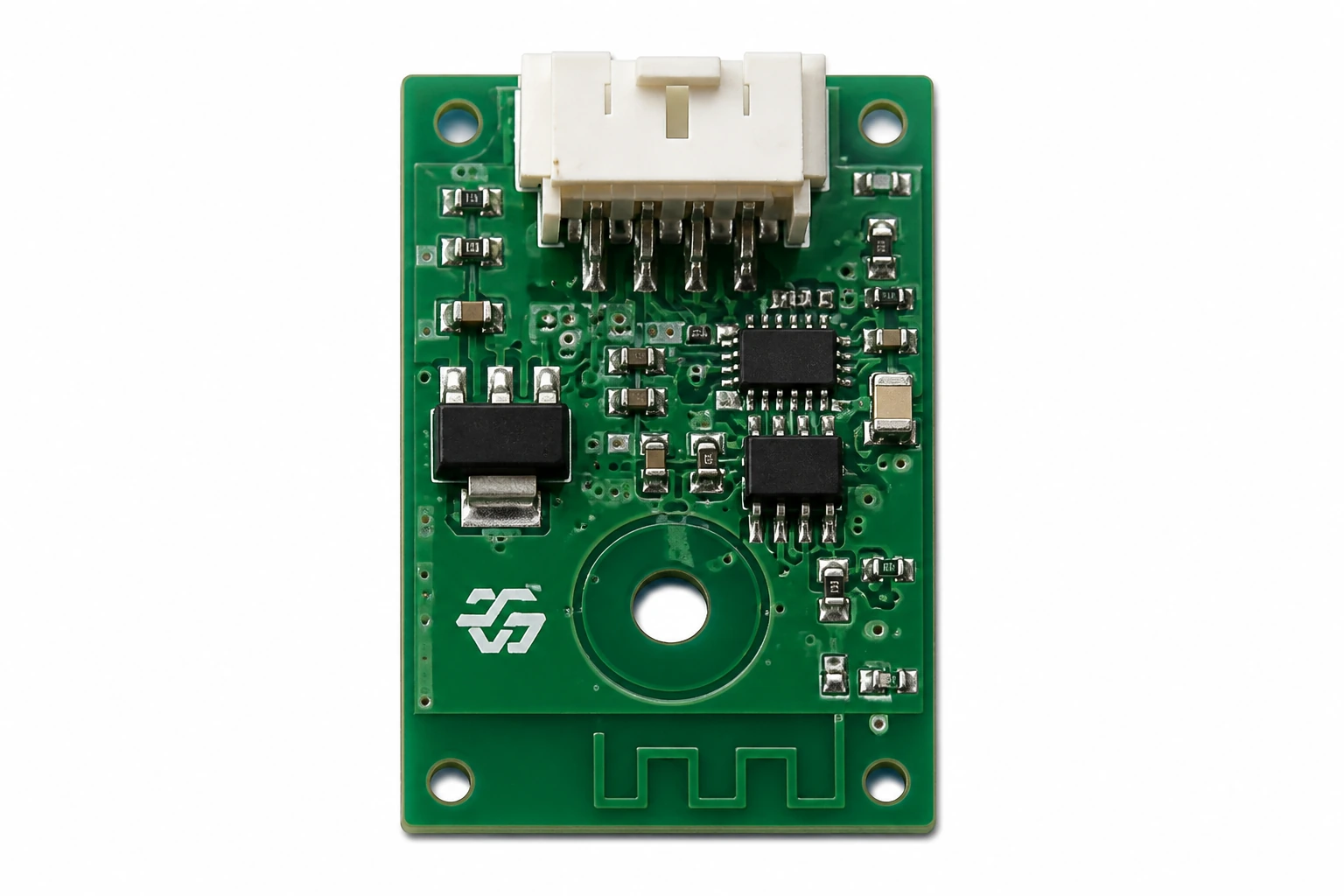

Air Purifier PCBA

  • PM2.5 auto mode, 3-color air display
  • 5-speed fan + one-touch turbo
  • 0–24h timer: on & off scheduling
  • Sleep, negative ion & child lock
  • Bluetooth key pairing, 3s, status LED
  • 3 modes: purify, fan & air-quality linked
  • 3-step fan linked to air quality
  • Smart humidify 45 → 60 %RH
  • Plasma + ion, 4-angle vertical swing
  • Bluetooth sleep, 1–12h, cover cutoff

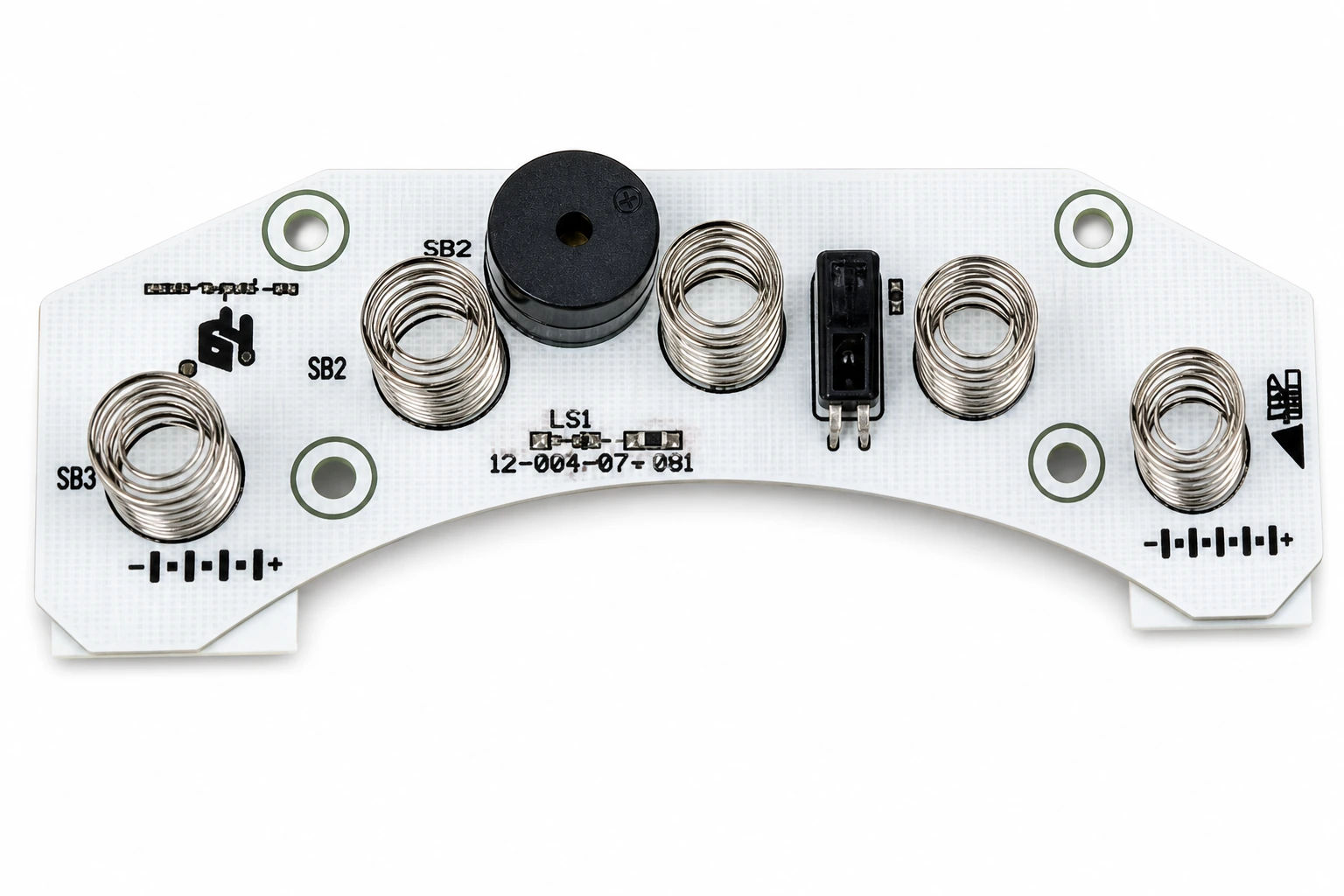

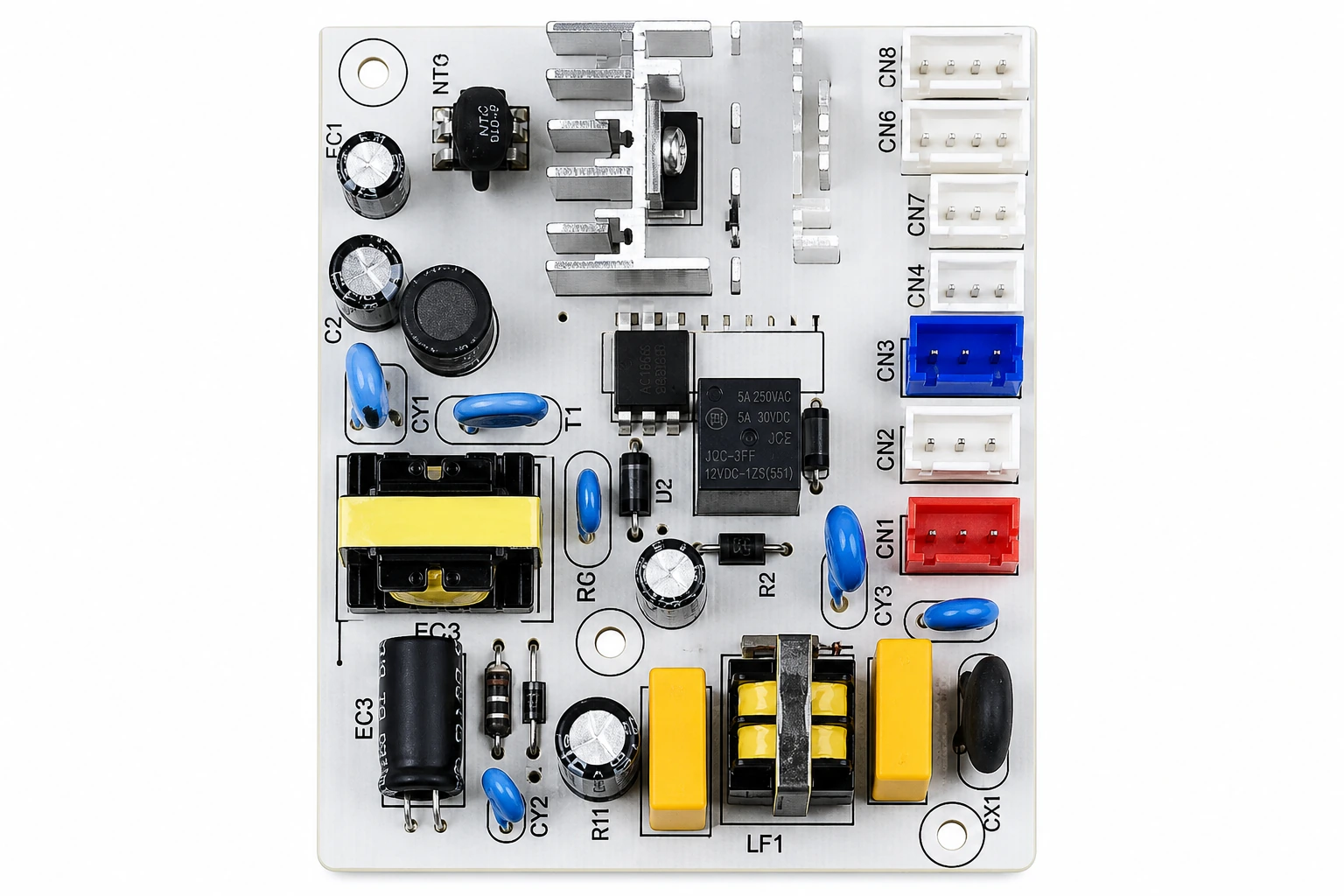

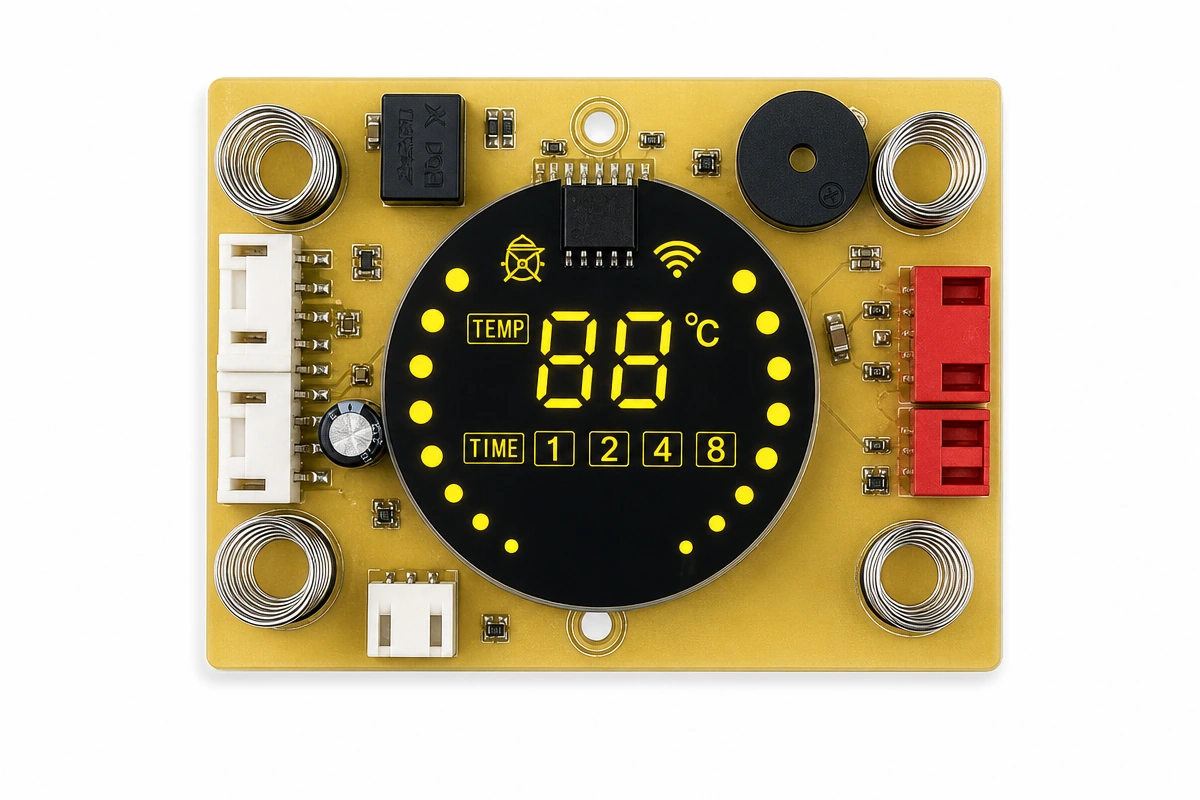

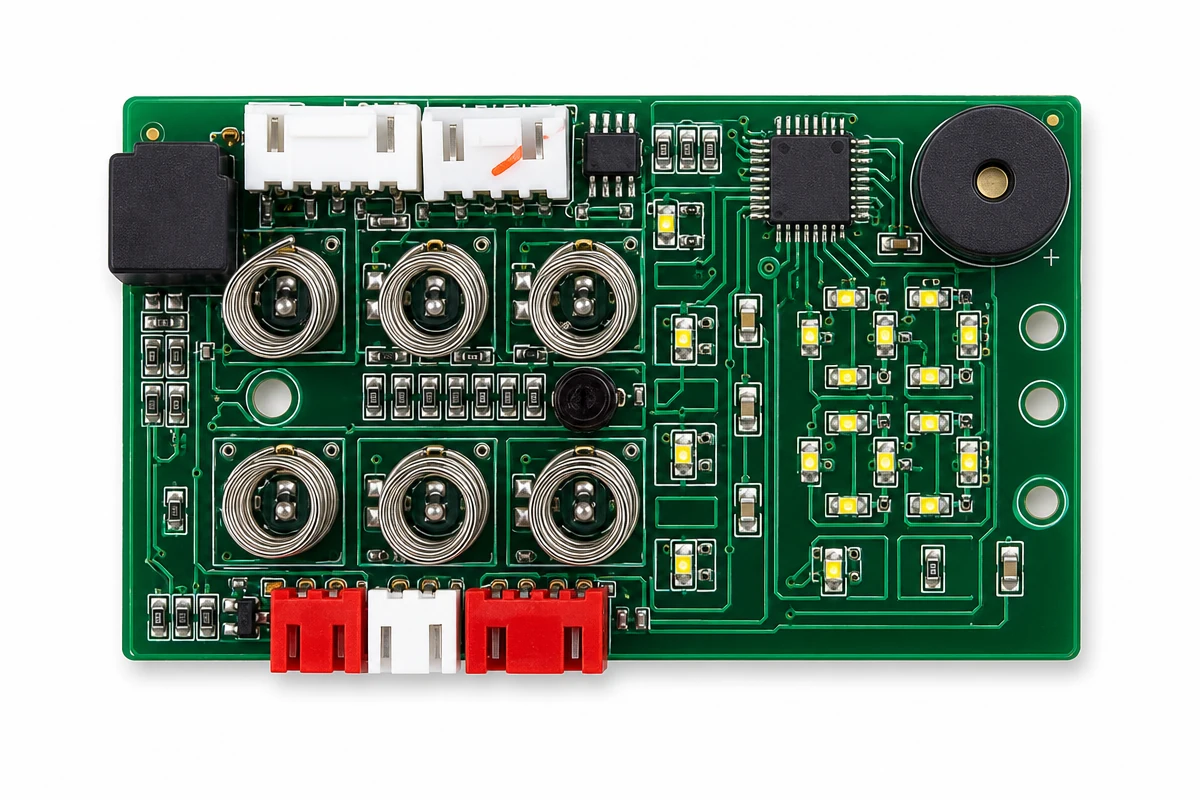

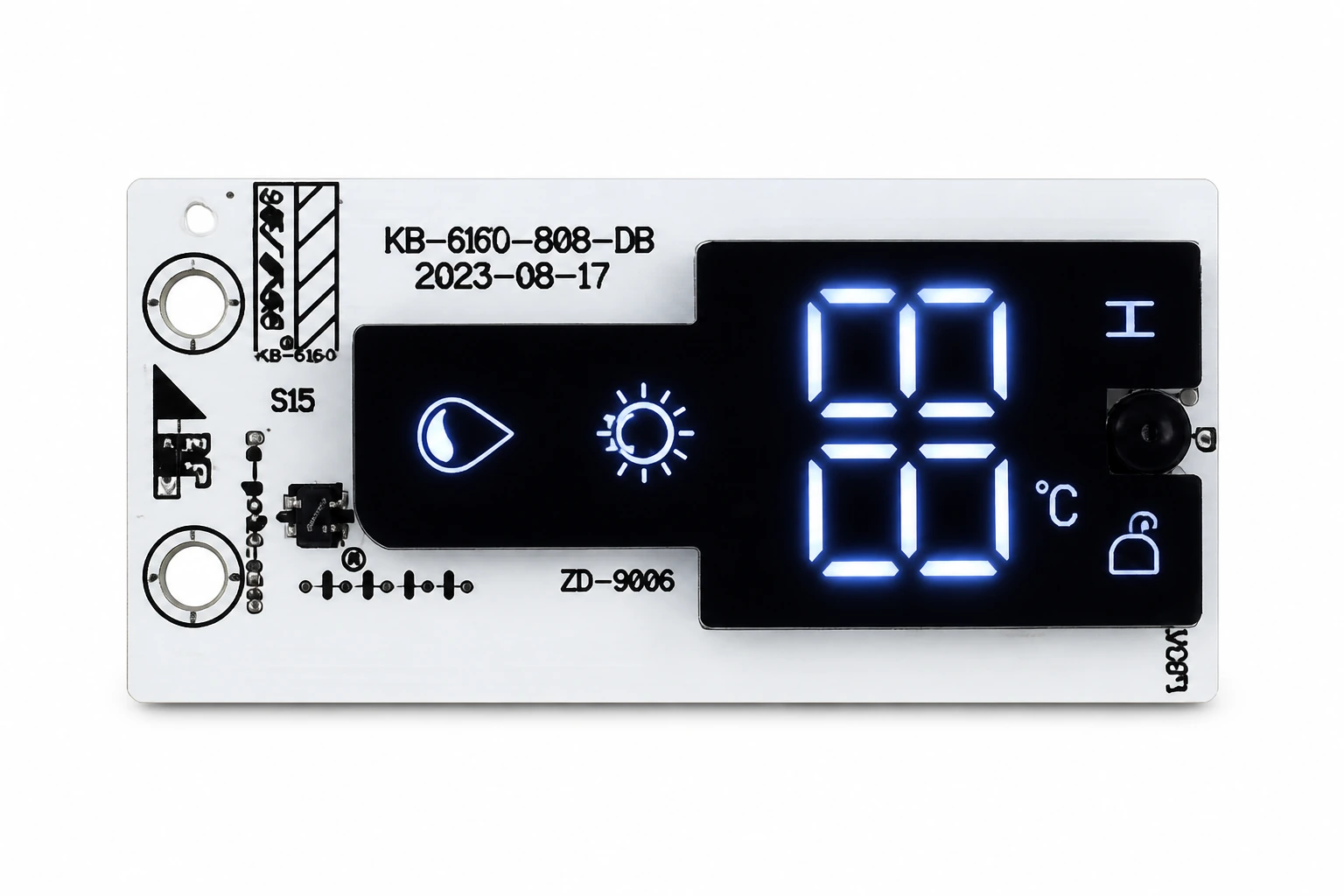

Complete electronic controller suite for smart hydronic heated mattress pad and plumbing blanket host including power driver board, curved spring touch keypad, and digital temperature display on white background Arc-shaped curved capacitive spring touch button interface board PCBA with vertical touch springs and buzzer for smart water heated mattress pads on white background Front panel user interface PCBA board with digital water temperature LED display and water level touch icons for plumbing blankets on pure white background

Water-Heated Blanket PCBA

  • Set 20–65 °C, real-time water temp display
  • One-touch preheat 55 °C / 1h
  • Remote: sleep 40 °C, mite 65 °C/2h, quilt 60 °C/1h
  • Child lock (LC), 3-min display off
  • Water-level icon & anti-freeze (Fd)
  • WiFi round-LCD, 4 keys + voice
  • 20–55 °C, ambient-light display
  • Sleep 42 → 39 °C, mite-kill 55 °C / 2h
  • 1–12h timer, remote child lock
  • E1–E3 codes, anti-freeze & tilt protection

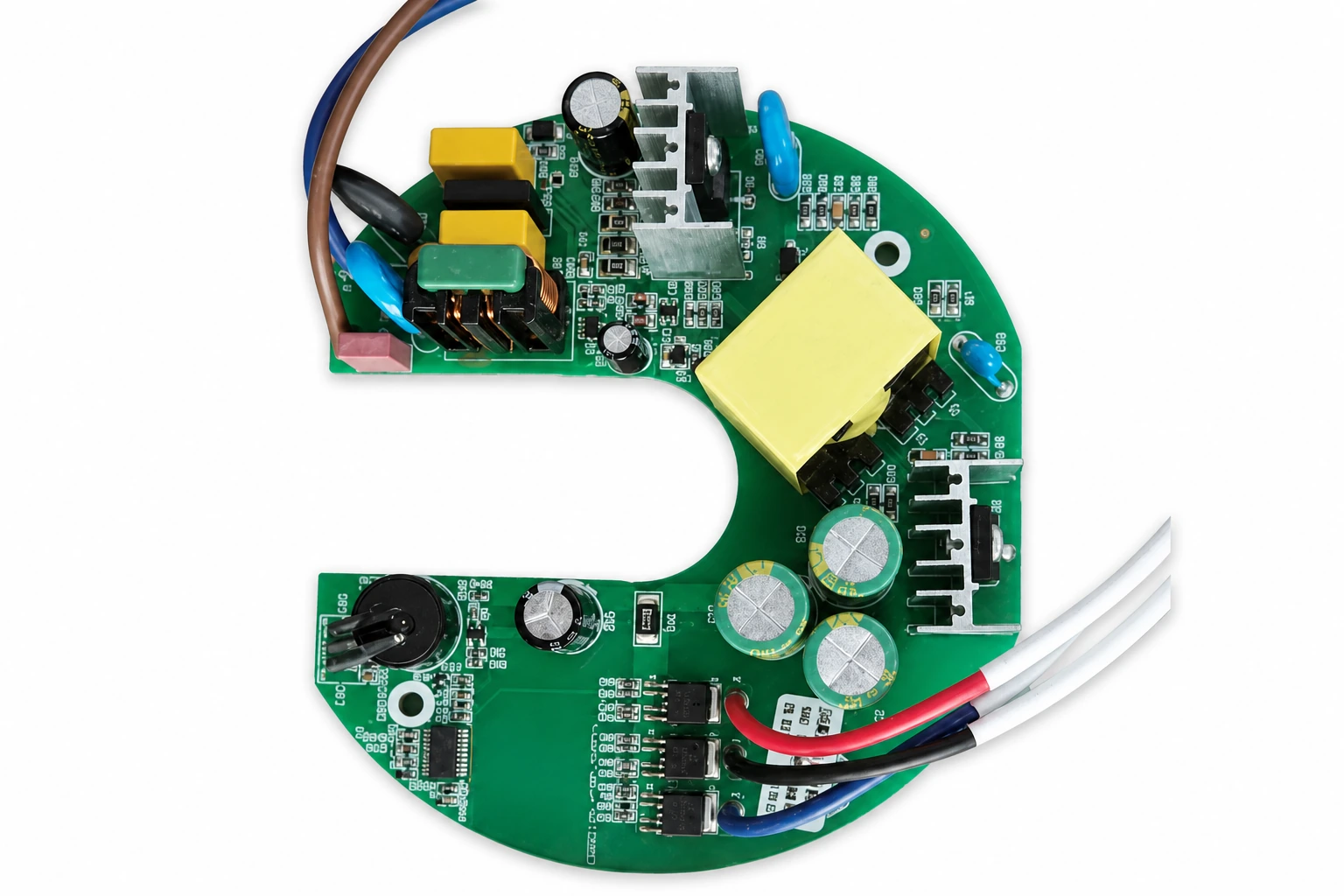

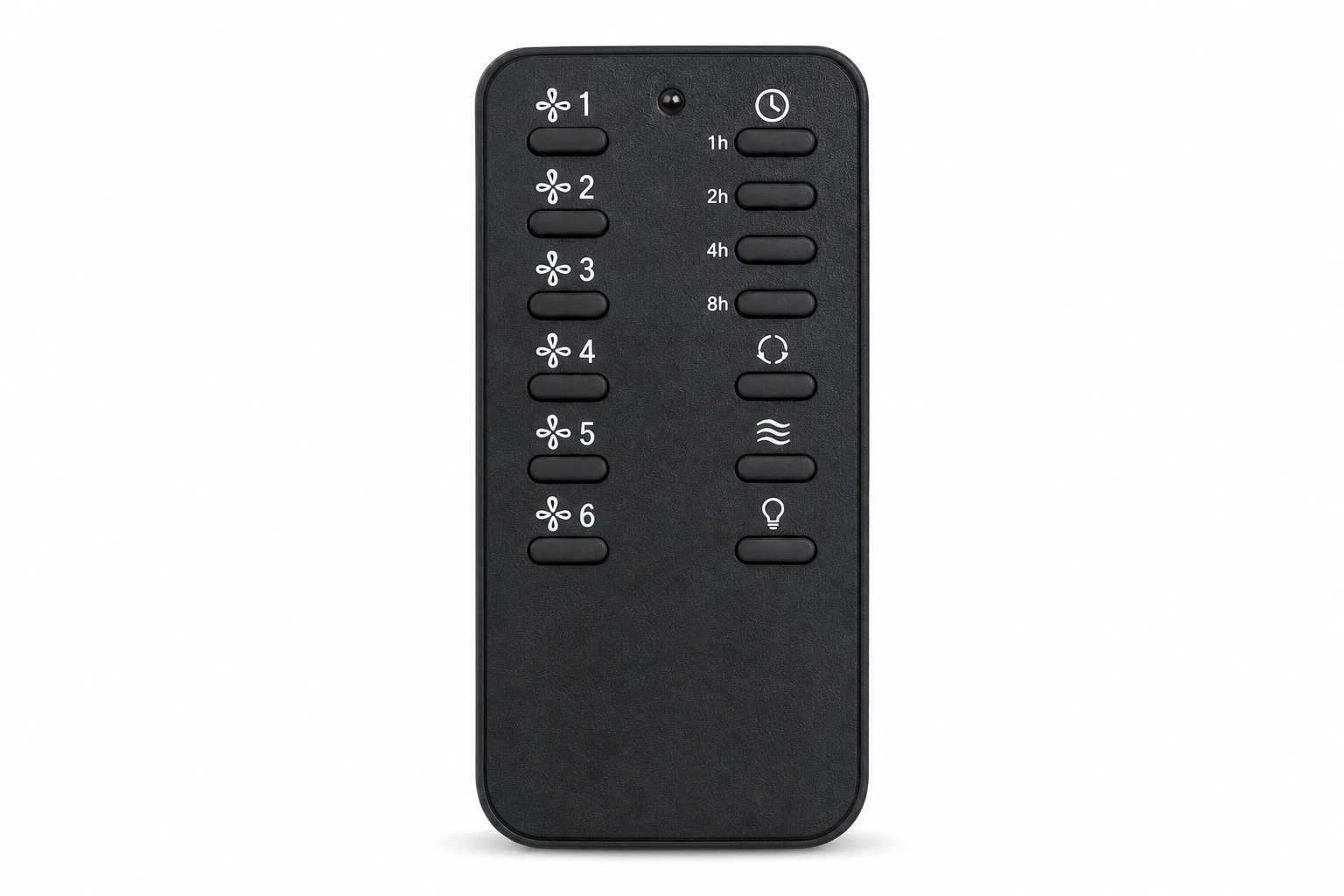

C-shaped circular BLDC motor inverter driver controller board PCBA for smart ceiling fans with aluminum heat sinks and power transformer on pure white background Handheld wireless infrared and RF remote controller for smart BLDC ceiling fans with speed, timer, and lighting control buttons on pure white background Fan-shaped BLDC ceiling fan inverter driver and wireless receiver sub-board PCBA with motor lead wires on pure white background

BLDC Ceiling Fan PCBA

  • 7-speed BLDC, direct 1–7 select
  • Default speed 3 on every power-up
  • Buzzer: two short on / long off
  • Control + power dual-board design
  • 120–250V / 40W, C-driver, heatsink mount

Smart Home Appliance PCBA — Frequently Asked Questions

What is a small-appliance PCBA, and how is it different from standard board assembly?

A small-appliance PCBA is the complete control board that drives a household appliance — compressor, fans, pumps, heaters, displays and user controls — rather than a generic board. HS covers the full chain: DFM review, SMT/THT assembly, testing and NPI, delivering production-ready boards that match your enclosure and user interface.

Can you customize one of these appliance boards to our exact requirements?

Yes. Every platform on this page is engineered to specification. HS adjusts layout, relay count and power stages, display type, connectivity (WiFi/Tuya, RF/IR remote) and firmware features — from a single modification on an existing platform to a fully new design developed with you.

What files do we need to provide for a custom appliance board?

If you have an existing design: Gerber files, BOM and pick-and-place data are enough. If you start from a concept, only your requirements are needed — HS’s 35-person R&D team handles schematic capture, PCB layout and component selection in-house.

Do you support small prototype batches?

Yes. Projects can start with a small number of prototype sets to validate design and assembly before scaling to mass production. NRE, unit pricing and lead time are quoted per project after we review your requirements.

How do you ensure board quality?

Every board passes AOI inspection, ICT and functional testing (FCT) with a full test report. Assembly follows IPC J-STD-001 under an ISO 9001 quality system; the factory is also certified ISO 14001, ISO 45001 and IATF 16949.

Which small appliances do these platforms cover?

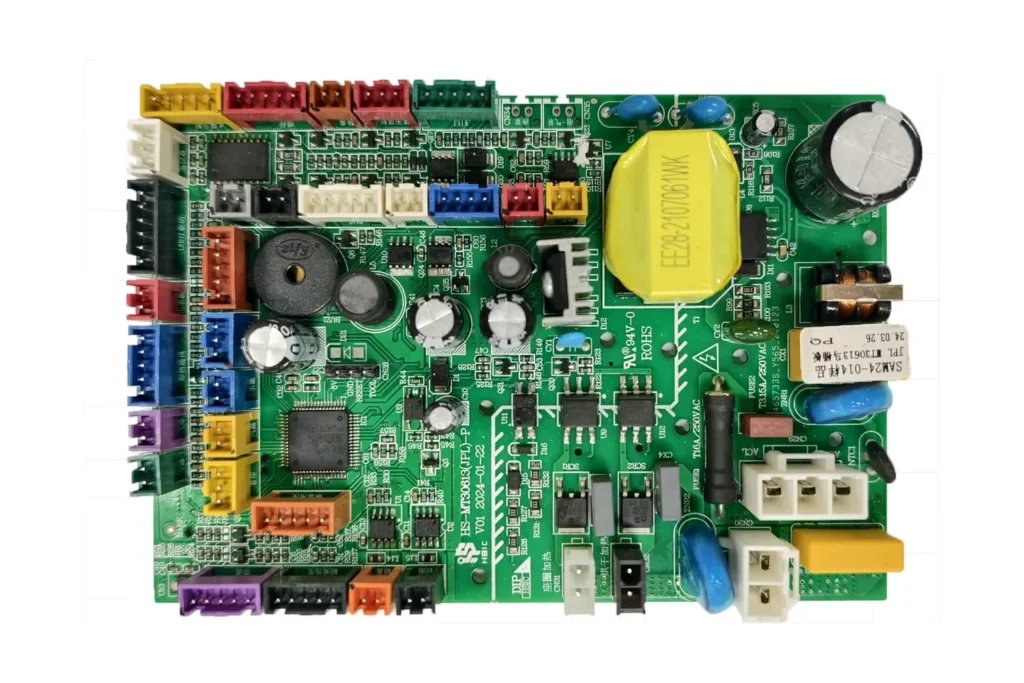

These platforms include dehumidifier control boards, air purifier control boards, water-heated blanket control boards, BLDC ceiling fan driver boards and smart toilet control boards. HS can adapt the same design-to-manufacturing process to other smart home appliance PCBA projects based on your product functions, enclosure, interface and production requirements.

Need a custom appliance control board?

From prototype to mass production, HS engineers, assembles and tests small-appliance PCBA to your specification — SMT/THT, NPI and full turnkey delivery.
